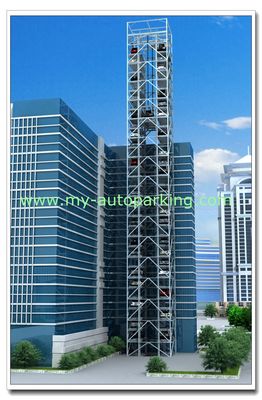

8-30 Floors 3D Stack Parking Equipment Automatic Smart Card Tower Parking System

8-30 Floors 3D Stack Parking Equipment Automatic Smart Card Tower Parking System

China 8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System supplier

Large Image :  8-30 Floors 3D Stack Parking Equipment Automatic Smart Card Tower Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: PCS8-30

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $4000-6000/Car space
Packaging Details: Standard Export Package
Delivery Time: 30-60 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 sets/month
Detailed Product Description

Product Specifications:


Brand Name  STMY
Model No.  PCS8-30
Type

 Full Automated Tower Parking System (8-30 Floors)

Mode of Operations  LCD /IC card/ Touch Screen
Car Capacity

 ≤2000kgs; 2350kgs;

Mode of drive

 Hydaulic & Wire Rope (8 to 15 levels)

 Tractor & Motor (8 to 30 levels)

Car Size  (L×W×H)

 5300mm×1900mm×1550mm;

 5300mm×1900mm×2050mm

Lifting/Sliding Motor Speed

 30-120m/min;  9.5m/min

Warning device

 Yes
Safeguard device

 Whole process protection and anti-falling device (our patent)

Rise Time   50s
Fall Time  40s
Work Noise  < 65dB ( A )
Power

 380V 50Hz 3 Phases (Customized for different country's request)

Pump Motor  15-30KW
Slide Motor  0.2kw
Rotary Power Speed  1.5kw 4rpm
Treatment

 High grade anti-crossion spray zinc and then spray paint (twice)

Malfunction Indication

 Fault diagnosis by computer, liquid crystal display

Certification  ISO9001 and CE





Working Principle:
The tower parking system adopts comb pallet with mixed characteristics of puzzle parking and vertical lift parking and it adopts a strong hydraulic or tractor motor fast drive mode.




Characteristics:

It is safer and more reliable using hydraulic or tractor drive;

Advanced PLC micro-controller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons or touch screen;

Saving energy and environmental protection;

Fashionable and elegant appearance will be easily in harmony with surrounding environment;




Adapted Places:
Limited parking space with open height (Height limit ≤30 levels)




Pictures:

8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System

8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System


8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System

8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System



8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System

8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System

8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System



8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System


8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System


8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System


8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System




Sample Drawings:

 8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System

  8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System



8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System



  8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System



Remarks:



1)  We can do  8 to 35 levels for this tower system;

2)  Hydraulic & wire rope / Traction & motor (optional) ;

3)  The garage can be all steel structure, or mixed structure with concrete shaft. (It's up to customer to choose);

4)  We can do some levels for SUVs or 100% SUVs spaces (according to customer's request);

5) Please send your land layout, our engineer will make design to provide the best parking solution for you.





Online Video Show:

https://youtu.be/AvfuzYJ7CxQ

https://youtu.be/MXBUKaIM9GA

https://youtu.be/d0JKv_Eg0Lo





FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---For this model, 8 car spaces can be loaded into 1x40'open top container;
---The HS code is 84289020

4. How about the lead time?
---30 to 60 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--We will send 1-2 engineers to your country to guide the installation, commissioning, training your staff.


Company Profile:

We are a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.

Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.

If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.



Here below are other main products of our company:8-30 Floors  3D Stack Parking Equipment Automatic Smart Card Tower Parking System
