Home ProductsTower Parking System

8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System

8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System

China 8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System supplier

Large Image :  8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: QDMY-PCS8-25

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $4000-6000/Car space
Packaging Details: Standard Export Package
Delivery Time: 30-90days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000sets/month
Detailed Product Description

Product Specifications:



Brand Name  QDMY
Model No.  QDMY-PCS8-25
Type

 Full Automated Tower Parking System (8-25 Floors)

Mode of Operations  LCD/IC card
Car Capacity

 ≤2000kgs

Mode of drive

 Tractor & Motor

Car Size  (L×W×H)

 5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm

Lifting/Sliding Motor Speed

 80-120m/min / 7.5m/min

Warning device

 Yes
Safeguard device

 Hydraulic whole protection and anti-fall frame Anti-fall frame

 (our patent)

Rise Time  50s
Fall Time  40s
Work Noise  < 80dB ( A )
Power

 3 phases 5 wires 380V 50Hz

Pump Motor  30KW
Slide Motor  0.2kw
Rotary Power Speed  1.5kw 4rpm
Treatment

 High Grade Anti-crossion Spray Paint

Malfunction Indication

 Fault diagnosis by computer, liquid crystal display

Certification  ISO9001 and CE



Working Principle

The tower parking system adopts comb pallet with mixed characteristics of puzzle parking and vertical lift parking and it adopts a strong tractor motor drive.



Characteristics of the System

It is safer and more reliable using traction drive; The layout of system is more flexible and better use of parking area than vertical lift parking system; This type of parking system is our national invention system and it is a new refreshing system of our high levels puzzle parking system, it is a replacement system of the vertical lift parking system (tower parking system)



Adapted Places

Limited parking space and open height ( height limit ≤25levels)



Pictures:

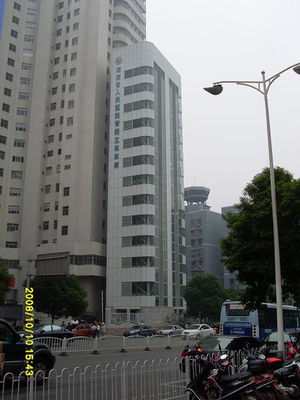

8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System



8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System





8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System







8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System



8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System



8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System



8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System



8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System



8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System

8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System



8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System

8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System



Remarks:  Please send us your land layout,  our engineer will design drawings and provide best parking solutions for you~!



Company Profile:

Qingdao Maoyuan Goup is a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.

Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.

If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.



Here below is other main products of our company8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25 Floors Automated Tower Parking System
