Home ProductsBasement Puzzle Parking System

Lift and Slide Puzzle PCL Control Auto Parking System

Lift and Slide Puzzle PCL Control Auto Parking System

China Lift and Slide Puzzle PCL Control Auto Parking System supplier

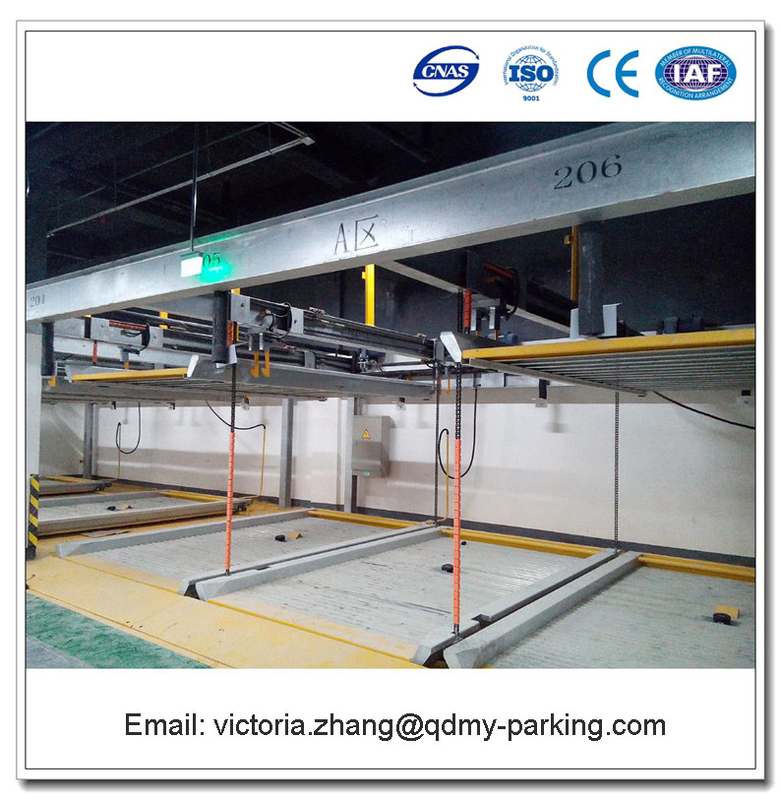

Large Image :  Lift and Slide Puzzle PCL Control Auto Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO & CE
Model Number: PSH2

Payment & Shipping Terms:

Minimum Order Quantity: 5 car spaces
Price: $2000-2500
Packaging Details: Standard Export Package
Delivery Time: 30-45 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 car spaces / month
Detailed Product Description

Product Specifications:

Brand Name  STMY
Model No.  PSH2
Type

 2 Level Smart Puzzle Parking System

Mode of Operation                  IC card/Manual buttons

Car Weight

 ≤2000kg;2500kg

Car Size(mm)

(Length x Width x Height)

 5000x1850x1550mm;

 5000x1850x2050mm;

Mode of Drive

 Motor & Chain

Lifting Motor Speed

 4.56m/min

Sliding Motor Speed  7.35m/min
HS Code  842890200

Power Supply

 380V/50Hz  3 Phase 5 Wires

 (Cutomized according to different country's demand)

Warning Device  Yes
Safeguard Device  Fixed anti-falling hook devices
Lift Motor Power

 2.2KW

Slide Motor Power      0.2KW
Outer Size   Please see below dimensions
Surface Treatment     Spray panit or Hot dipped galvanized  (Optional)
Color

 Blue, Grey, Yellow, Red, black...  (Customized )

Certification

 ISO and CE

Warranty Time  5 years for structure,  12 months for electrical key parts



Actuating Device (Optional):

1. Motor + Chain + Car Loading Pallet

2. Hydraulic +Motor + Car Loading Pallet(optional)



Working Principle:

The equipment is designed with 2-levels and multi-rows and each level is designed with a space as an exchanging space. All space can be lifted automatically except the space in the top level. When the car needs to park or release, all spaces under this car space and forms lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.



Characteristics:

Take full use of land to raise more parking spaces;

Reliable motor with chain drives;

High speed and fast pick cars;

A whole system for safety protection for cars or personals;

Saving energy and environmental protection;

Advanced PLC microcontroller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons;

Fashionable and elegant appearance will can be easily in harmony with surrounding environmen



Protection Device

Safety anti-falling hook;

Over or under voltage protection;

Wrong or lack phase protection;

Motor overload safety protection;

Overtime/short time safety protection;

Vehicle positioning device;

Vehicle length detection and entrance photoelectric safety device;

Warning light when operation;

Emergency stop device;

Power-off brake;

Fault diagnosis display on liquid;

The limit switch status tracking detection.



Adapted Places

Residential parking lot, apartment, public parking place, hotels, schools, shopping mall, commercial center and office buildings, etc...



Pictures

Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System

Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System



Lift and Slide Puzzle PCL Control Auto Parking System

Structures:

Lift and Slide Puzzle PCL Control Auto Parking System

Note:



1. This 2 level smart puzzle parking system can be used in both indoor and outdoor parking lots.



2. The parking car numbers can be increased according to your land size.



3. Please provide us your land layout in Autocad or PDF, our engineer  will make design for you and provide best parking solution for your project.





Online video shows:



2 Levels Smart Puzzle Parking System Online  Video




Package: Iron frame pallet and foam film

Lift and Slide Puzzle PCL Control Auto Parking System







FAQ

 1.  What trade term you can accept?

----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).



2.   What payment term can you accept?

----Often we accept TT or LC.  For small sample order, we can accept ESCROW, PAYPAL, WEST UNION, etc...



3. How about the loading information and HS Code?

---For this model, 16  car slots can be loaded into 1x40'GP container;
                            or 17 car slots can be loaded into 1x40' open top container.
---The HS code is 842890000

4. How about the lead time?
---30 to 45 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--This model of product is simple structure, usually we send installation drawings to the client, and they can install it themselves.

9. Can you install for us?
--We can send our engineer to your country to guide the installation. But your party need to find  local workers to do the installation work.
