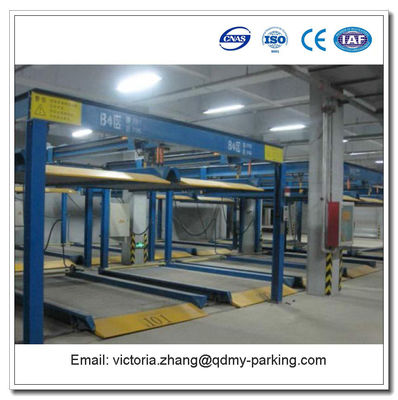

2 Level Smart Puzzle Parking System
|Mode of Operation||IC card/Manual buttons|
(Length x Width x Height)
Mode of Drive
Motor & Chain
Lifting Motor Speed
|Sliding Motor Speed||7.35m/min|
380V/50Hz 3 Phase 5 Wires
(Cutomized according to different country's demand)
|Safeguard Device||Fixed anti-falling hook devices|
|Lift Motor Power||
|Slide Motor Power||0.2KW|
|Outer Size||Please see below dimensions|
|Surface Treatment||Spray panit or Hot dipped galvanized (Optional)|
Blue, Grey, Yellow, Red, black... (Customized )
ISO and CE
|Warranty Time||5 years for structure, 12 months for electrical key parts|
Actuating Device (Optional):
1. Motor + Chain + Car Loading Pallet
2. Hydraulic +Motor + Car Loading Pallet(optional)
The equipment is designed with 2-levels and multi-rows and each level is designed with a space as an exchanging space. All space can be lifted automatically except the space in the top level. When the car needs to park or release, all spaces under this car space and forms lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.
Take full use of land to raise more parking spaces;
Reliable motor with chain drives;
High speed and fast pick cars;
A whole system for safety protection for cars or personals;
Saving energy and environmental protection；
Advanced PLC microcontroller programmed and has Liquid crystal display;
Very simple operated with a smart card or manual buttons;
Fashionable and elegant appearance will can be easily in harmony with surrounding environmen
Safety anti-falling hook;
Over or under voltage protection;
Wrong or lack phase protection;
Motor overload safety protection;
Overtime/short time safety protection;
Vehicle positioning device;
Vehicle length detection and entrance photoelectric safety device;
Warning light when operation;
Emergency stop device;
Fault diagnosis display on liquid;
The limit switch status tracking detection.
Residential parking lot, apartment, public parking place, hotels, schools, shopping mall, commercial center and office buildings, etc...
1. This 2 level smart puzzle parking system can be used in both indoor and outdoor parking lots.
2. The parking car numbers can be increased according to your land size.
3. Please provide us your land layout in Autocad or PDF, our engineer will make design for you and provide best parking solution for your project.
Online video shows:
Package: Iron frame pallet and foam film
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
----Often we accept TT or LC. For small sample order, we can accept ESCROW, PAYPAL, WEST UNION, etc...
3. How about the loading information and HS Code?
Our company is a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.
Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.
If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.
