Product Details:
Payment & Shipping Terms:
|
Type: | Parking Lift |
---|
Product Specifications:
Brand Name | STMY |
Model No. | PSH2 |
Type |
2 Level Smart Puzzle Parking System |
Mode of Operation | IC card/Manual buttons/Remote controller |
Car Weight |
≤2000kg;2500kg |
Car Size(mm) (Length x Width x Height) |
5000x1850x1550mm; 5000x1850x2050mm; |
Mode of Drive |
Motor & Chain |
Lifting Motor Speed |
4.56m/min |
Sliding Motor Speed | 7.35m/min |
HS Code | 842890200 |
Power Supply |
380V/50Hz 3 Phase 5 Wires (Cutomized according to different country's demand) |
Warning Device | Yes |
Safeguard Device | Fixed anti-falling hook devices |
Lift Motor Power |
2.2KW |
Slide Motor Power | 0.2KW |
Outer Size | Please see below dimensions |
Surface Treatment | Spray panit or Hot dipped galvanized (Optional) |
Color |
Blue, Grey, Yellow, Red, black... (Customized ) |
Certification |
ISO and CE |
Warranty Time | 5 years for structure, 12 months for electrical key parts |
Actuating Device (Optional):
1. Motor + Chain + Car Loading Pallet
2. Hydraulic +Motor + Car Loading Pallet(optional)
Working Principle:
The equipment is designed with 2-levels and multi-rows and each level is designed with a space as an exchanging space. All space can be lifted automatically except the space in the top level. When the car needs to park or release, all spaces under this car space and forms lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.
Characteristics:
Take full use of land to raise more parking spaces;
Reliable motor with chain drives;
High speed and fast pick cars;
A whole system for safety protection for cars or personals;
Saving energy and environmental protection;
Advanced PLC microcontroller programmed and has Liquid crystal display;
Very simple operated with a smart card or manual buttons;
Fashionable and elegant appearance will can be easily in harmony with surrounding environmen
Protection Device
Safety anti-falling hook;
Over or under voltage protection;
Wrong or lack phase protection;
Motor overload safety protection;
Overtime/short time safety protection;
Vehicle positioning device;
Vehicle length detection and entrance photoelectric safety device;
Warning light when operation;
Emergency stop device;
Power-off brake;
Fault diagnosis display on liquid;
The limit switch status tracking detection.
Adapted Places
Residential parking lot, apartment, public parking place, hotels, schools, shopping mall, commercial center and office buildings, etc...

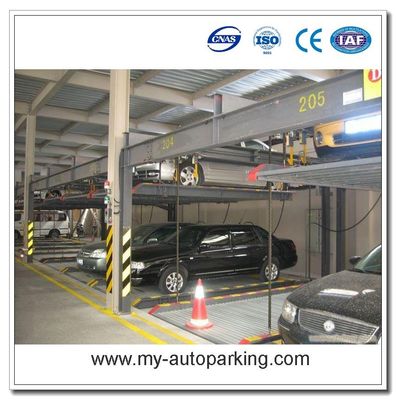

Pictures
Structures:
Note:
1. This 2 level smart puzzle parking system can be used in both indoor and outdoor parking lots.
2. The parking car numbers can be increased according to your land size.
3. Please provide us your land layout in Autocad or PDF, our engineer will make design for you and provide best parking solution for your project.
Online video shows:
Package: Iron frame pallet and foam film
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
----Often we accept TT or LC. For small sample order, we can accept ESCROW, PAYPAL, WEST UNION, etc...
3. How about the loading information and HS Code?
