Product Specifications:
| Brand Name | STMY |
| Model No. | QDMY-3-2P；QDMY-4-3P |

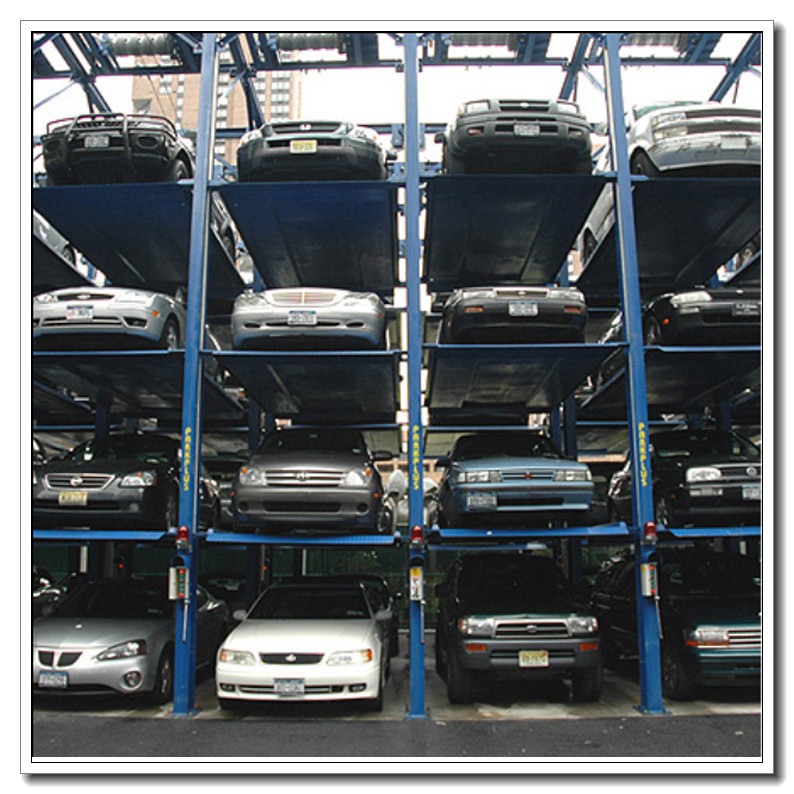

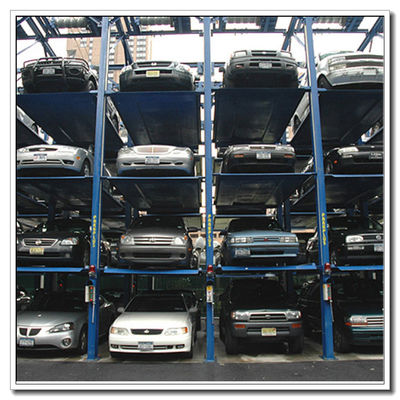

| Type | 3 or 4 Levels Valet Stack Parking Lift |
| Mode of Operations | Manual Control buttons / Keys |
| Car Capacity |
≤2500kg |
|
Mode of drive |
Hydraulic |
| Car Size (L×W×H) |
5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm; |
|
Lifting speed |
5.6m/min |
|
Warning device |
Yes |
| Safeguard device | Anti-fall Lock devices |
| Rise Time | 60s |
| Fall Time | 50s |
| Work Noise | < 60dB ( A ) |
| Voltage |
110V/220V/240V/380V (Customized) |
| Motor Power | 3.0 KW |
| Maximum Working Pressure | 16 MPa |
| Machine Net Weight | No more than 4650kgs |
| Modes of operation |
High-grade anti-corrosion paint ; Hot galvanized (optional) |
| Color |
Red, Blue, Grey, Yellow etc. ( customized according to user demand ) |
| Certification |
ISO9001 & CE |
Introduction:
1. Storage parking system, mostly used for new cars or cars not move frequently;
2. The platforms can be overlapped, the column can be shared upon the parking space, more economical and safer;
3. With front ramp and rear ramp, both front and rear direction can be used for cars driving in or out. numerous lines of this equipments can be installed together, only one access for cars driving in or out, which saves the ground space;
4. Simple transmission structure, platform is lifted by steel cable which is connected to four corners of platform;
5. Screw structure joint of steel cable connects to the platform, maintenance personnel can adjust the balance of cables conveniently;
6. With two stages lock system, automatic lock for every platform, which prevent the upper platform to touch the below car;
7. One unlock handle to release every platform;
8. The cylinders have the pour rumsfeld device, which protects the cylinders, more safer;
9. Mold machining through the whole process so that the parts are universal and interchangeable;
10. Pass 120% capacity dynamic load text and 150% static load test;
11. Italian oil seal to make sure no oil leakage, inner anti-explosion valve in case of platform drop;
12. Optional ultrared rays alarm device, in case of unguarded entrance;
Online Video Show:
http://v.youku.com/v_show/id_XNzEyMzM3MzQ0.html
Pictures:
Structure and Dimensions:
QDMY-3-2P
QDMY-4-3P
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
----Often we accept TT or LC. For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...
3. How about the loading information and HS Code?
