2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels

2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels

China 2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels supplier

Large Image :  2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: QDMY-8033; QDMY-8034; QDMY-8035

Payment & Shipping Terms:

Minimum Order Quantity: 3 Sets
Price: $1600-9000
Packaging Details: Standard Export Package
Delivery Time: 30days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000sets/month
Detailed Product Description

Product Specifications:



Brand Name  QDMY
Model No.  QDMY-8033; QDMY-8034; QDMY-8035
Type  3,4,5 Levels Valet Stack Parking Lift
Mode of Operations  Manual Control buttons /  Keys
Car Capacity

 ≤2000kgs; or ≤3200kg

Mode of drive

 Hydraulic & Motor

Car Size  (L×W×H)

 5000mm×1850mm×1550mm

Lifting speed

 5.6m/min

Warning device

 Yes
Safeguard device  Anti-fall Lock devices
Rise Time  50s
Fall Time  40s
Work Noise  < 60dB ( A )
Voltage

 380V/220V 7.5kw; 220V/110V 2hp

Motor Power  7.5KW
Maximum Working Pressure  16 MPa
Machine Net Weight  No more than 4650kgs
Modes of operation

 High-grade anti-corrosion paint

Color

 Red, Blue, Grey, Yellow etc. ( customized

 according to user demand )

Certification

 ISO9001



Introduction:

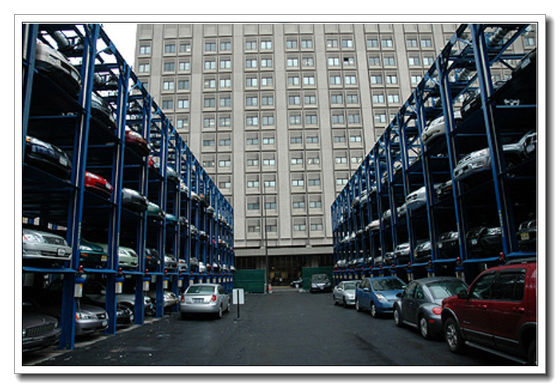

The Four Post Quad Stacker auto parking lift can be installed indoors or outdoors. The parking system shares legs to allow for better space utilization and stronger structural design. Our exclusive design allows each unit to be operated by a powerful 7.5 hp motor. Our safety design surpasses any system on the market today. Our chain lifting design is much safer and has a longer life than conventional cable systems that can eventually stretch and break. They are also designed to park SUV’s on all levels. Contact us and let us show you how to maximize your space in our maxed out world.



Product Advantages:



1.Anti-fall lock system included (In the unlikely event of lift failure, there is a safety lock in each column).

2.Lifting Chain sprockets with bearings for longer life and maintenance free operation (bushing system require regular lubrication).

3.All units are powder coated or have the option of galvanized platforms (no rust).

4.All platforms are completely sealed (no oil, water, or other fluids dripping on the lower vehicle).

5.Full length platform 17’ for extra long vehicles.

6.Key operated (prevents unauthorized use).

7.Dual height limit switches on each machine (extremely safe and reliable).

8.Can be customized to suit a client’s particular application.

.

Pictures:

2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels

2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels

2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels



2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels



2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels



2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels



2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels



2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels

Company Profile:

Qingdao Maoyuan Goup is a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.

Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.

If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.



Here below is other main products of our company2 3 4 Floor Smart Car Lift Parking System Quad Stacker Parking System 4 Post Multi Levels
