Product Details:
Payment & Shipping Terms:
|
Product Specifications:
| Brand Name | STMY |
| Product Name | Triple Stacker Car Parking Lift |
| Model No. | QDMY-2-3P |
| Mode of Drive | Hydaulic & Wire Rope |
| Car Capacity | ≤2300kg, 2500kg |
| Middle Level Height | 1700mm, 1800mm, 1900mm, 2000mm, 2100mm (Customized) |
| Mode of Operation | Manual buttons / Keys |
| Motor Power | 2.2 Kw |
| Unlock method | Electric |
| Safeguard device | Whole process protection and anti-falling device |
| Warning Device | Yes |
| Rise/Fall Time | 50/40s |
| Working Noise | < 65dB ( A ) |
| Voltage | 110V/220V/230V/240V/380V/415V (Customized ) |
| Oil Trays | 6 nos. |
| Surface Treatment | High-grade anti-corrosion powder coating or hot dipped galvaznied |
| Color | Red, Blue, Grey, Yellow, Black, etc. (Customized ) |
| HS Code | 84289020 |
| Certificate | ISO9001 and CE |
| Warranty Term | 12 months for electrical parts, 5 years for structure |
Descriptions:
1. Storage parking system, mostly used for new cars or cars not move frequently.
2. The 2 platforms can be overlapped, the column can be shared upon the parking space, more economical and safer.
3. With front ramp and rear ramp, both front and rear direction can be used for cars driving in or out. numerous lines of this equipments can be installed together, only one access for cars driving in or out, which saves the ground space.
4. Simple transmission structure, platform is lifted by steel cable which is connected to four corners of platform.
5. Screw structure joint of steel cable connects to the platform, maintenance personnel can adjust the balance of cables conveniently.
6. With two stages lock system, automatic lock for every platform, which prevent the upper platform to touch the below car.
7. One unlock handle to release every platform.
8. The cylinders have the pour rumsfeld device, which protects the cylinders, more safer.
9. Mold machining through the whole process so that the parts are universal and interchangeable.
10. Pass 120% capacity dynamic load text and 150% static load test.
11. Italian oil seal to make sure no oil leakage, inner anti-explosion valve in case of platform drop.

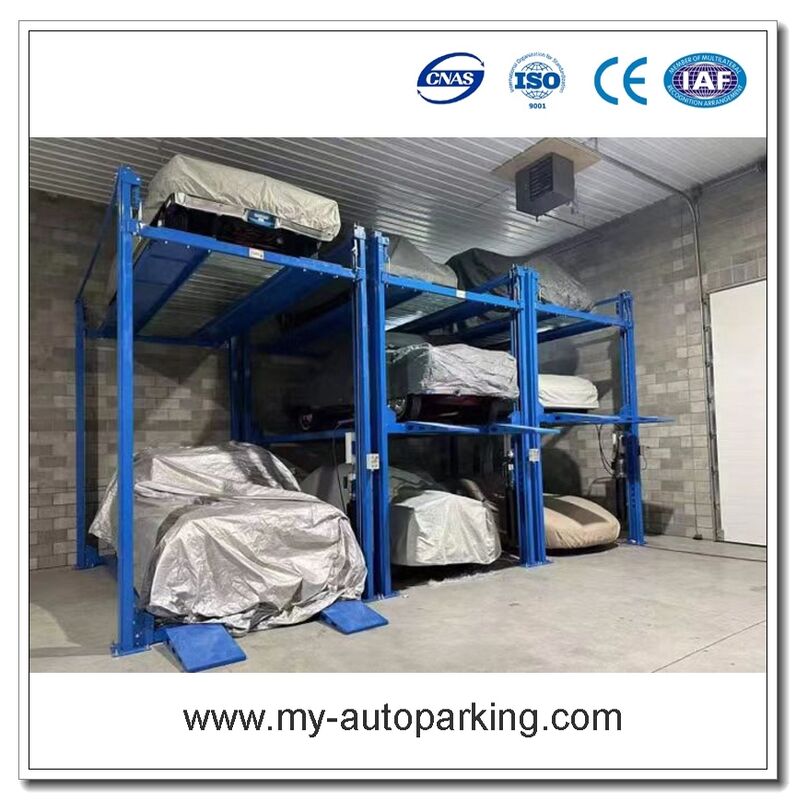

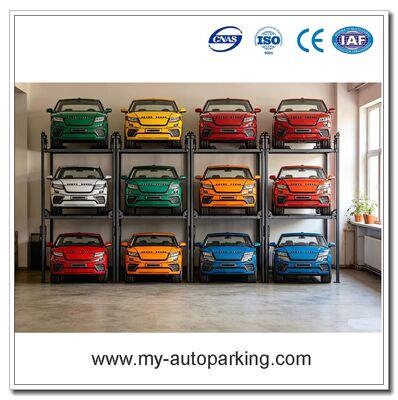

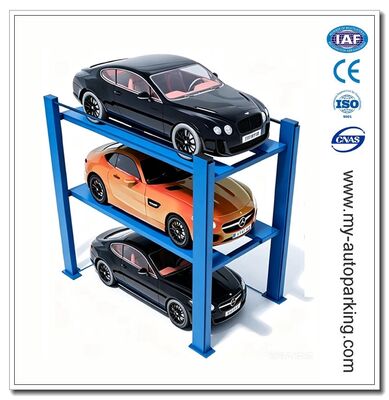

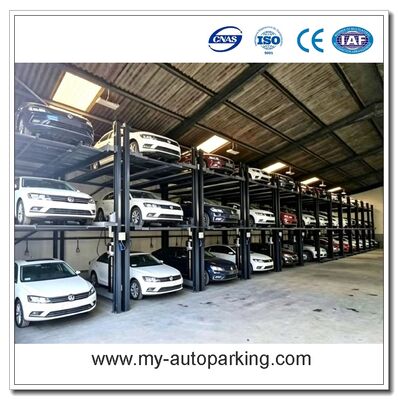

Images:
Drawings:
FAQ
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.
3. How about the loading information and HS Code?
Company Profile:
We are a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.
Our company is located in Qingdao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.
If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.
