Product Details:
Payment & Shipping Terms:
|
| Type: | Parking Lift |
|---|
Product Specifications:
| Brand Name | STMY |
| Model No. |
QDMY-608(E); QDMY-608N(E); QDMY-608XLT(E); (E) means electrical lock release |

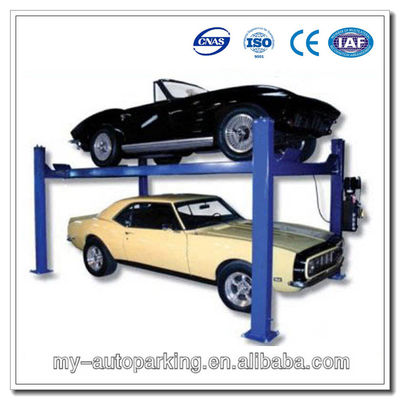

| Type | Four Post Car Parking Lift for 2 cars (Double Stacker) |
| Mode of Operations | Manual buttons / Keys |
| Car Capacity |
≤3700kgs (8000 lbs) |
|
Mode of drive |
Hydraulic |
| Car Size (L×W×H) |
5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm; |
|
Lifting Height |
QDMY-608(E): 1800mm; QDMY-608N(E): 1900mm: QDMY-608XLT(E): 2000mm. |
|
Warning device |
Yes |
| Safeguard device | Hydraulic whole protection and anti-fall lock devices |
| Rise Time | 50s |
| Fall Time | 40s |
| Work Noise | < 80dB ( A ) |
| Voltage |
220V/240V/380V (customized) |
| Motor Power | 2.2KW |
| Maximum Working Pressure | 16 MPa |
| Machine Net Weight | less than 1000kgs |
| Modes of operation |
High-grade anti-corrosion paint |
| Color |
Black, Red, Blue, Grey, Yellow etc. ( customized according to user demand ) |
| Certificate | ISO9001 and CE |
Working Principle:
This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.
Description:
1. Good choice for parking and simple repair
2. Hydraulic driven, cable lifting system
3. Manual or electric single point release
4. Automatic lock system ensure safety in different heights
5. Maintenance free load bearing
6. Immovable runway
7. Stop blocks in all posts for added safety
8. Moveable drip trays prevent pollution of vehicle on floor
9. Caster kit for moving the lift easily
10.Mold machining through the whole process so that the parts are universal and interchangeable
11.120% capacity Dynamic load text and 150% static load test
12.Italian oil seal to make sure no oil leakage
13.Electromagnetic valve with urgent manual drop function
14.Optional Manual pump for lock release in case of power off.
15.Optional 24V Control box and Electromagnetic valve
Pictures:
Structure and Dimensions:
(
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
----Often we accept TT or LC. For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...
3. How about the loading information and HS Code?
