|Product Name:||Car Parking Lift|

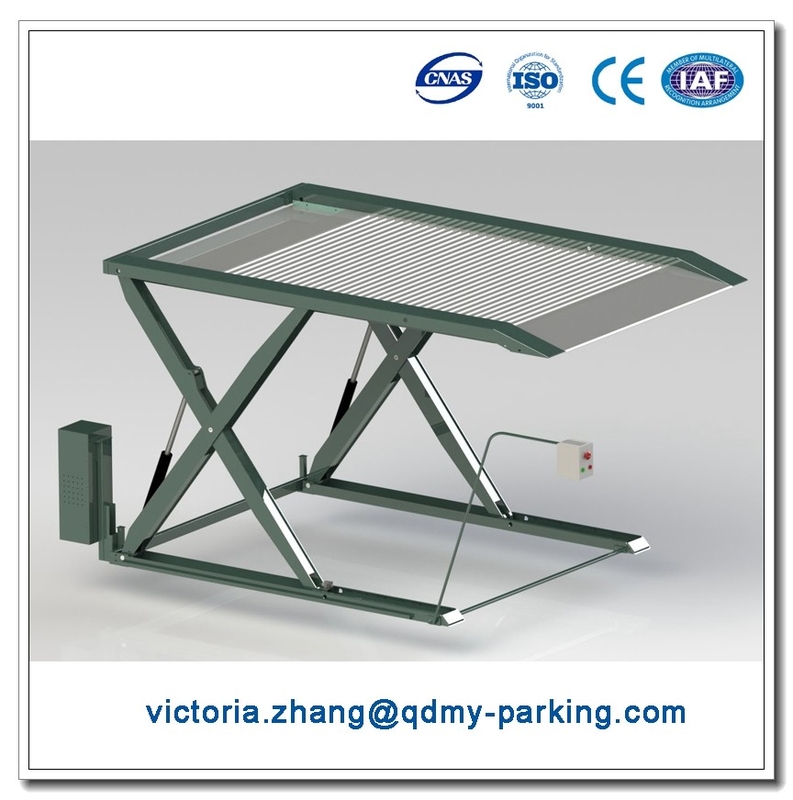

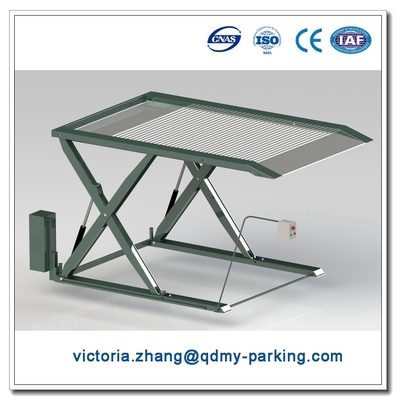

Car Stacker Smart Car Parking System Hydraulic Parking Equipment
|Type||Scissor car parking lift|
|Mode of Operation||Manual control buttons / Keys|
|Car Weight||≤2700kg (9000 lbs)|
|Car Size (L/W/H)||
|Mode of Drive||Hydraulic|
|Working Voltage||220V/1Ph, 380V/3Ph (according to user's demand)|
|Safeguard Device||Fixed anti-falling lock devices|
|Control System Voltage||AC24|
|Car Platform Thickness||≥200mm|
|Outer Size||Please see below dimensions|
High-grade anti-corrosion paint
or galvanized treatment
|Color||Red, Blue, Grey, Yellow etc. (Optional)|
|Certification||ISO9001 and CE|

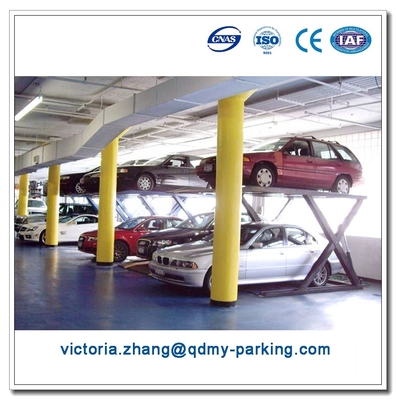

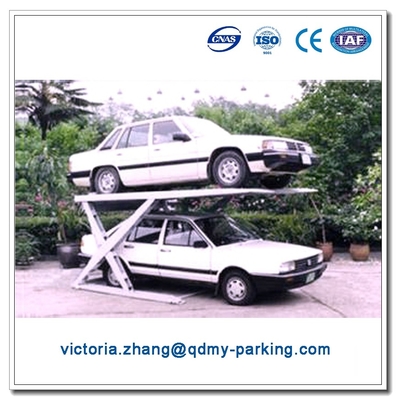

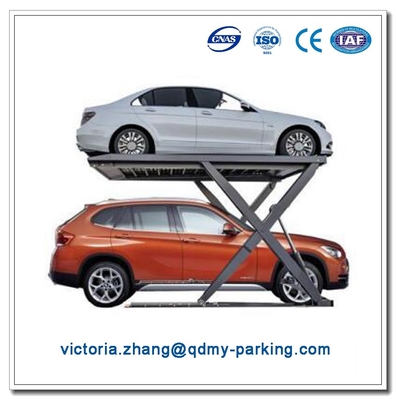

This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.
1. Can be used in household or office building parking lot;
2. Graceful and compact configuration;
3. Driven by hydraulic cylinders directly, equalizer ensures the synchronization and level of platform;
4. Simple and practical lock system, automatic lock and release system, safe and reliable;
5. Optional wave plate or diamond plate car platform; Optional spray paint or hot galnanized surface treatment;
6. Mold machining through the whole process so that the parts are universal and interchangeable;
7. Pass 120% capacity dynamic load test and 150% capacity static load test;
8. Italian oil seal to make sure no oil leakage;
9. Solenoid valve has the emergency manual lock release function;
10. Optional manual pump on power unit in case of power off;
11.Optional 24v control box and solenoid valve;
12.Optional ultrared rays alarm device, in case of unguarded entrance;
Structure and Dimensions:
(Give us your land size, we can make design for you!)
