Home ProductsScissor Parking Lift

Scissor Lift Car Lift Garage Lift

Scissor Lift Car Lift Garage Lift

China Scissor Lift Car Lift Garage Lift supplier
Scissor Lift Car Lift Garage Lift supplier Scissor Lift Car Lift Garage Lift supplier Scissor Lift Car Lift Garage Lift supplier Scissor Lift Car Lift Garage Lift supplier Scissor Lift Car Lift Garage Lift supplier

Large Image :  Scissor Lift Car Lift Garage Lift

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: DSPL606

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $1600-2300
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 3000 sets/month
Contact Now
Detailed Product Description

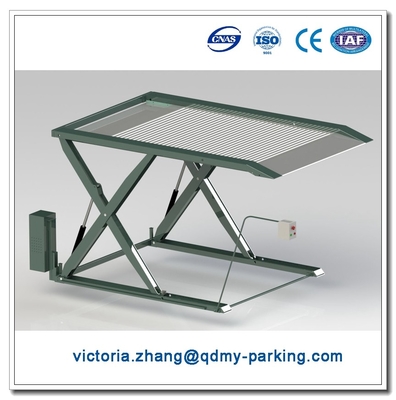

Product Name: Car Parking Lift

Scissor Car Parking Lift


Product Specifications:

Brand Name STMY
Model No. DSPL606
Type Scissor car parking lift
Mode of Operation Manual control buttons / Keys
Car Weight ≤2700kg (9000 lbs)
Car Size (L/W/H)



Lifting Height 2000mm
Mode of Drive Hydraulic
Runway Width 2126mm
Motor Power 2.2KW
Working Voltage 220V/1Ph, 380V/3Ph (according to user's demand)
Warning Device Yes
Safeguard Device Fixed anti-falling lock devices
Control System Voltage AC24
Car Platform Thickness ≥200mm
Outer Size Please see below dimensions
Machine Weight 1100kg
Surface Treatment

High-grade anti-corrosion paint

or galvanized treatment

Color Red, Blue, Grey, Yellow etc. (Optional)
Certification ISO9001 and CE


Working Principle:

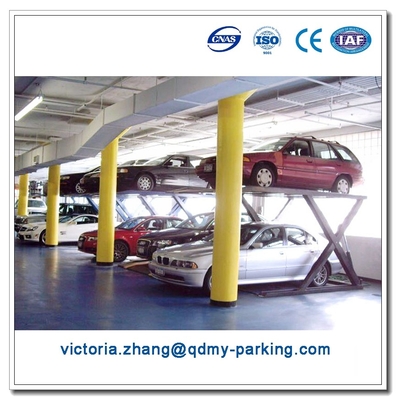

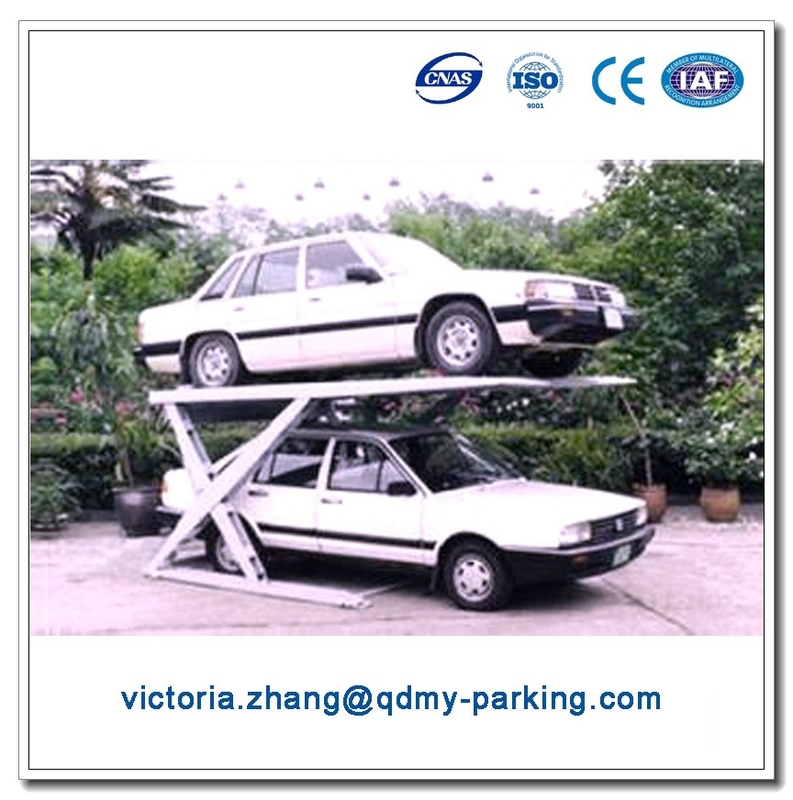

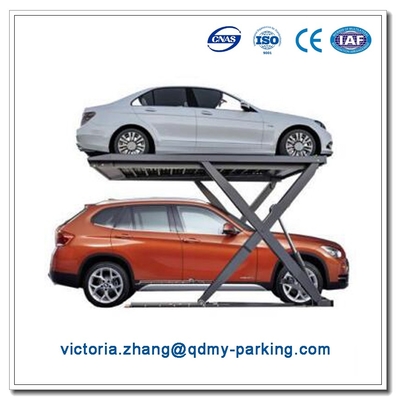

This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.



  • Simple operation
  • Safe and reliable
  • Convenient in and out of car
  • Ultra low noise
  • Small space occupation
  • Beautiful and fashionable in appearance
  • Easy and fast installation
  • Both suitable for home use and public use



1. Can be used in household or office building parking lot;

2. Graceful and compact configuration;

3. Driven by hydraulic cylinders directly, equalizer ensures the synchronization and level of platform;

4. Simple and practical lock system, automatic lock and release system, safe and reliable;

5. Optional wave plate or diamond plate car platform; Optional spray paint or hot galnanized surface treatment;

6. Mold machining through the whole process so that the parts are universal and interchangeable;

7. Pass 120% capacity dynamic load test and 150% capacity static load test;

8. Italian oil seal to make sure no oil leakage;

9. Solenoid valve has the emergency manual lock release function;

10. Optional manual pump on power unit in case of power off;

11.Optional 24v control box and solenoid valve;

12.Optional ultrared rays alarm device, in case of unguarded entrance;



Scissor Lift Car Lift Garage Lift


Scissor Lift Car Lift Garage Lift


Scissor Lift Car Lift Garage Lift


Scissor Lift Car Lift Garage Lift


Structure and Dimensions:


Scissor Lift Car Lift Garage Lift


(Give us your land size, we can make design for you!)

Scissor Lift Car Lift Garage Lift


1. What trade term you can accept?

----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).


2. What payment term can you accept?

----Often we accept TT or LC. For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...


3. How about the loading information and HS Code?

---For this model, 16 units can be loaded into 1x40'GP container;
---The HS code is 84289020
4. How about the lead time?
---30 to 40 days (according to order quantity);
5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;
7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;
8. How about the installation?
--This model of product is simple structure, usually we send installation drawings to the client, and they can install it themselves.
9. Can you install for us?
--We can send our engineer to your country to guide the installation. But your party need to find local workers to do the installation work.
