| Product Name: | Car Parking Lift |
|---|
Scissor Car Parking Lift
Product Specifications:
| Brand Name | STMY |
| Model No. | DSPL606 |
| Type | Scissor car parking lift |
| Mode of Operation | Manual control buttons / Keys |
| Car Weight | ≤2700kg (9000 lbs) |
| Car Size (L/W/H) |
≤5000mm×1850mm×1550mm; ≤5000mm×1850mm×2050mm; |
| Lifting Height | 2000mm |
| Mode of Drive | Hydraulic |
| Runway Width | 2126mm |
| Motor Power | 2.2KW |
| Working Voltage | 220V/1Ph, 380V/3Ph (according to user's demand) |
| Warning Device | Yes |
| Safeguard Device | Fixed anti-falling lock devices |
| Control System Voltage | AC24 |
| Car Platform Thickness | ≥200mm |
| Outer Size | Please see below dimensions |
| Machine Weight | ≤1100kg |
| Surface Treatment |
High-grade anti-corrosion paint or galvanized treatment |
| Color | Red, Blue, Grey, Yellow etc. (Optional) |
| Certification | ISO9001 and CE |
Working Principle:
This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.
Characteristics:
Descriptions:
1. Can be used in household or office building parking lot;
2. Graceful and compact configuration;
3. Driven by hydraulic cylinders directly, equalizer ensures the synchronization and level of platform;
4. Simple and practical lock system, automatic lock and release system, safe and reliable;
5. Optional wave plate or diamond plate car platform; Optional spray paint or hot galnanized surface treatment;
6. Mold machining through the whole process so that the parts are universal and interchangeable;
7. Pass 120% capacity dynamic load test and 150% capacity static load test;
8. Italian oil seal to make sure no oil leakage;
9. Solenoid valve has the emergency manual lock release function;
10. Optional manual pump on power unit in case of power off;
11.Optional 24v control box and solenoid valve;
12.Optional ultrared rays alarm device, in case of unguarded entrance;

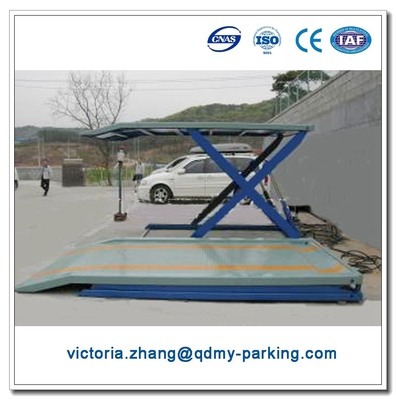

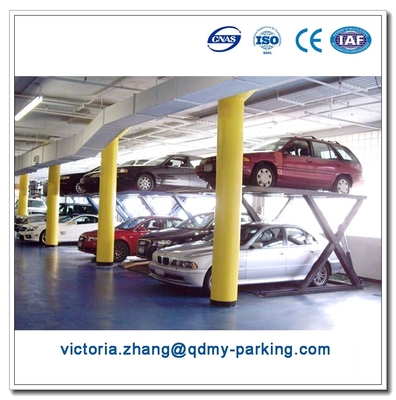

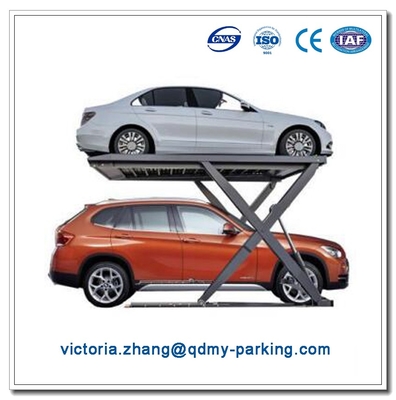

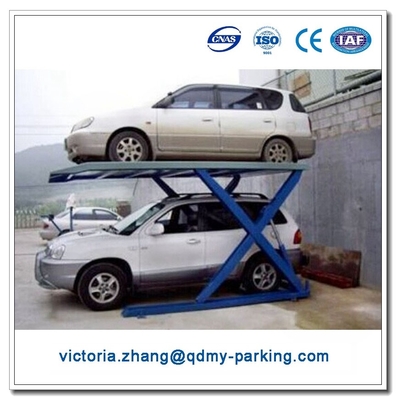

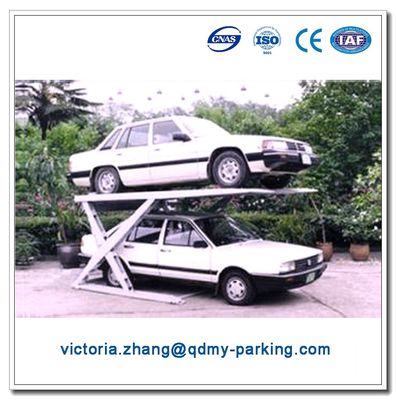

Pictures:
Structure and Dimensions:
(Give us your land size, we can make design for you!)
