Product Details:
Payment & Shipping Terms:
|
Product Specifications:
| Brand Name | QDMY |
| Model No. | QDMY-PCLP |
| Type |
Parallel Conveyor Type Automatic Car Parking System |
| Mode of Operation | Manual buttons/ IC card and Touch panel |
| Car Weight |
≤2000kg |
|
Car Size (L/W/H) |
5200mm×1950mm×1550mm |
| Each Level Height |
2100mm |
|
Overall Height |
10750mm |
| Clamp Arm Motor Power | 1.5KW |
| Sliding Motor Power of Conveyor | 0.75KW |
|
Sliding Motor Power of Clamp Arm |
0.2KW |
| Clamp Arm Rated Speed | 30m/min (Frequency adjustable) |
| Sliding Speed of Conveyor | 45m/min (Frequency adjustable) |
| Sliding Speed of Clamp Arm |
15m/min |
| Mode of Drive | Hydraulic drive and steel rope hoisting |
| Power Supply |
380/50hz 3Phases 5 wires (Customized according to user's demand) |
| Garage Door | Quick flexdoor or 2U door |
| Surface Treatment |
Galvanized treatment and high-grade anti-corrosion paint |
| Color |
Red, Blue, Grey, Yellow etc. (Customized according to user's demand ) |
| Certification | ISO9001 and CE |
Working Principle:

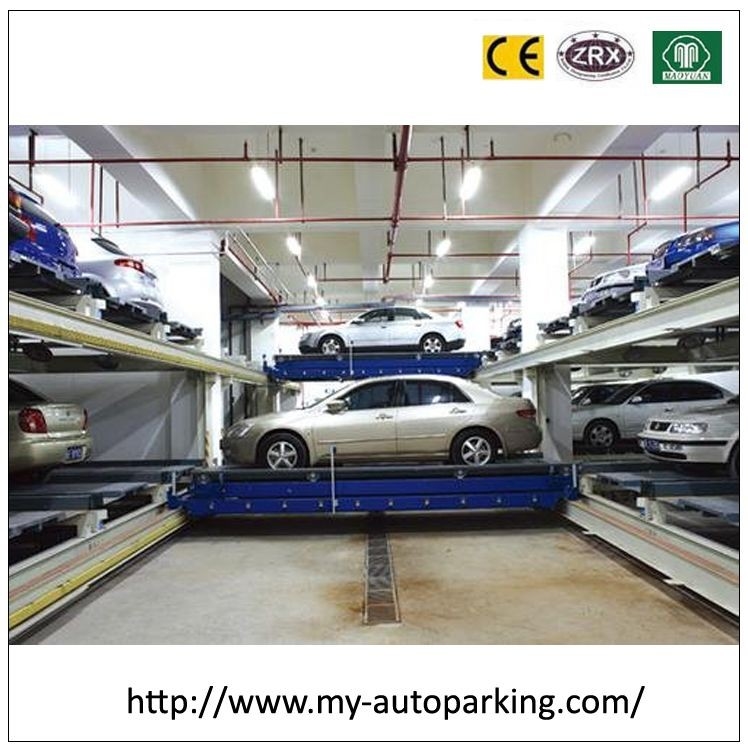

This equipment can park or pick car automatically with a movement of vertical elevator and the reciprocating movements of conveyor on the same level. The car will be turned into right direction when it reaches into the parking room with the movement of a rotation pallet, and then the car will be driven in or out by the car owner.
The car in red color will be picked and it needs to finish the following actions:
1. The convey pallet will slide to the back of this red car, and then the conveyor will convey the red car to the pallet;
2. The convey pallet with the red car will slide to the adjacent position of the elevator, and then the conveyor will change the red car's space from the adjacent to the elevator;
3. The elevator with the red car will lifted vertically down or up to the parking room;
4. The red car will be turned to the right direction by the movement of the rotation pallet;
5. The car will be driven out by car owner;
6. If the whole equipment is above ground, the parking room will be in the bottom level; If the whole equipment is underground, the parking room will be designed in the top level (It depends on client's demand) .
Remarks: Please send us your land layout, our engineer will design drawings and provide best parking solutions for you~!
