Home ProductsPuzzle Parking System (Motor and Wire Rope)

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

China 2-6 Levels Smart Car Parking System/Parking System Project Smart Garage supplier

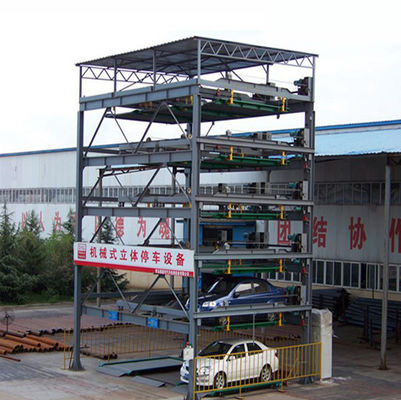

Large Image :  2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: PSH2-9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $2000-4000
Packaging Details: Standard Export Package
Delivery Time: 20-30days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 5000 sets/month
Detailed Product Description

Product Specifications:



Brand Name  QDMY
Model No.  QDMY-P2-6
Type

 Full Automated Mechanical Puzzle Car Parking System

 ( 1-6 Levels )

Mode of Operations  LCD/IC card/Manual
Car Capacity

 ≤2000kgs; ≤2500kg

Mode of drive

 Hydraulic+Chain / Motor+Steel Rope

Car Size  (L×W×H)

 5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm

Lifting speed

 4KW 8-12m/min  / 2.2KW 5.6m/min

Warning device

 Yes
Safeguard device

 Hydraulic whole protection and anti-fall frame Anti-fall frame

 (our patent)

Rise Time  50s
Fall Time  40s
Work Noise  < 80dB ( A )
Voltage

 220V/240V/380V

Motor Power  2.2KW
Maximum Working Pressure  16 MPa
Malfunction Indication  Fault diagnosis by computer, liquid crystal display
Treatment

 Galvanized treatment and high-grade anti-corrosion paint

Color

 Red, Blue, Grey, Yellow etc. ( customized

 according to user demand )

Certification  ISO9001 and CE



Actuating Device:



1. Motor + Chain + Car Loading Pallet

2. Motor + Steel Rope + Car Loading Pallet

3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet



Working Principle:



The equipment is designed with multi-levels and multi-rows and each level is designed with a space as an exchanging space. All space can be lifted automatically except the space in the top level. When the car needs to park or release, all spaces under this car space and forms lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.



Characteristics:



Optional modes of drive

Hydraulic high speed drive

Motor steel rope rolling drive

Motor gear box chain drive

It adopts 7 national patents technology

It has safeguard functions of over going protection and crashing protection

The whole system is adopted galvanized anti-corrosion treatment

Hydraulic drive has advantages of over loading protection

empty loading motor starting

Saving energy and environmental protection

Automatic Control System has Fault Diagnosis and display for a quick troubleshooting.



Adapted places

Underground basement, Apartment, Public Parking place, shopping mall, etc.



Pictures:

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

 2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

 2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage

2-6 Levels Smart Car Parking System/Parking System Project Smart Garage



2-6 Levels Smart Car Parking System/Parking System Project Smart Garage



Remarks:  Please send us your land layout,  our engineer will design drawings and provide best parking solutions for you~!



Company Profile:

Qingdao Maoyuan Goup is a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.

Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.

If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.



Here below is other main products of our company2-6 Levels Smart Car Parking System/Parking System Project Smart Garage
