Product Details:
Payment & Shipping Terms:
|
Product Specifications:
| Brand Name | QDMY |
| Model No. | QDMY-P2-6 |
| Type |
Full Automated Mechanical Puzzle Car Parking System ( 1-6 Levels ) |
| Mode of Operations | LCD/IC card/Manual |
| Car Capacity |
≤2000kgs; ≤2500kg |
|
Mode of drive |
Hydraulic+Chain / Motor+Steel Rope |
| Car Size (L×W×H) |
5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm |
|
Lifting speed |
4KW 8-12m/min / 2.2KW 5.6m/min |
|
Warning device |
Yes |
| Safeguard device |
Hydraulic whole protection and anti-fall frame Anti-fall frame (our patent) |
| Rise Time | 50s |
| Fall Time | 40s |
| Work Noise | < 80dB ( A ) |
| Voltage |
220V/240V/380V |
| Motor Power | 2.2KW |
| Maximum Working Pressure | 16 MPa |
| Malfunction Indication | Fault diagnosis by computer, liquid crystal display |
| Treatment |
Galvanized treatment and high-grade anti-corrosion paint |
| Color |
Red, Blue, Grey, Yellow etc. ( customized according to user demand ) |
| Certification | ISO9001 and CE |
Actuating Device:
1. Motor + Chain + Car Loading Pallet
2. Motor + Steel Rope + Car Loading Pallet
3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet
Working Principle:
The equipment is designed with multi-levels and multi-rows and each level is designed with a space as an exchanging space. All space can be lifted automatically except the space in the top level. When the car needs to park or release, all spaces under this car space and forms lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.
Characteristics:
Optional modes of drive
Hydraulic high speed drive
Motor steel rope rolling drive
Motor gear box chain drive
It adopts 7 national patents technology
It has safeguard functions of over going protection and crashing protection
The whole system is adopted galvanized anti-corrosion treatment
Hydraulic drive has advantages of over loading protection
empty loading motor starting
Saving energy and environmental protection
Automatic Control System has Fault Diagnosis and display for a quick troubleshooting.
Adapted places
Underground basement, Apartment, Public Parking place, shopping mall, etc.

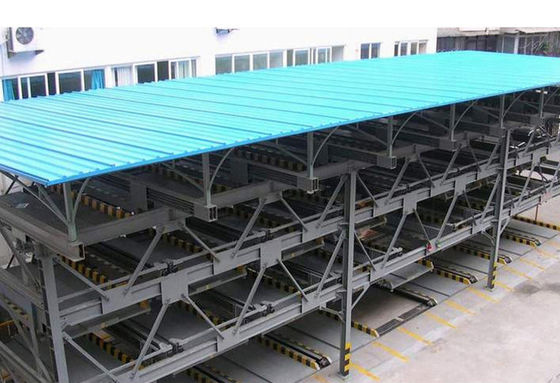

Pictures:
Remarks: Please send us your land layout, our engineer will design drawings and provide best parking solutions for you~!
Company Profile:
Qingdao Maoyuan Goup is a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.
Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.
If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.
