Home ProductsFour Post Pit Design Parking Lift (Motor & Chain)

-1+1, -2+1, -3+1 Parking System Solutions

-1+1, -2+1, -3+1 Parking System Solutions

China -1+1, -2+1, -3+1 Parking System Solutions supplier

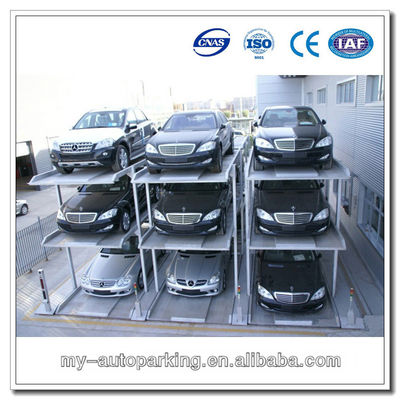

Large Image :  -1+1, -2+1, -3+1 Parking System Solutions

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO & CE
Model Number: PJS-1+1; PJS-2+1; PJS-3+1

Payment & Shipping Terms:

Minimum Order Quantity: 3 Sets
Price: $2500-3000
Packaging Details: Standard Export Package
Delivery Time: 30days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 sets/month
Detailed Product Description

Product Specifications:

Brand Name  STMY
Model No.

  PJS(-1+1);  1 level above ground, 1 level underground in a pit

  PJS(-2+1);   1 level above ground, 2 levels underground in a pit

  PJS(-3+1);   1 level above ground, 3 levels underground in a pit

Type    Pit design parking system
Mode of Operations                                      Keys/Manual Control buttons
Car Capacity

 ≤2000kgs; 2500kg

Mode of drive

 Motor+Chain / Hydraulic +Chain

Car Size  (L×W×H)

 5000mm×1850mm×1550mm;

 5000mm×1850mm×2050mm;

Lifting speed

 5.6m/min

Warning device

 Yes
Safeguard device  Whole protection and anti-falling hook device
Rise Time  50s
Fall Time  40s
Work Noise  < 80dB ( A )
Voltage

 220V/240V/380V (cusomized)

Motor Power  2.2KW
Maximum Working Pressure  16 MPa
Machine Net Weight  No more than 4650kgs
Modes of operation

Galvanized treatment and high-grade anti-corrosion paint

Color

 Red, Blue, Grey, Yellow etc.

 (customized according to user demand )

Certification  ISO9001 and CE



Actuating Device:

1. Motor + Chain + Car Loading Pallet

2. Motor + Steel Rope + Car Loading Pallet

3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet



Working Principle:



This is -1+1, -2+1, or -3+1 pit design parking system ( 1, 2, or 3 cars are underground in a pit, and 1 car above ground). The whole equipment can be lifted up and down as one unity, when the car platform is in the same line with the ground level, then the car can be collected or parked.



Characteristics:

  • Simple operation
  • Safe and reliable
  • Convenient in and out of car
  • Ultra low noise
  • Small space occupation
  • Beautiful and fashionable in appearance
  • Easy and fast installation
  • Both suitable for home use and public use



Online Video

http://v.youku.com/v_show/id_XNjkzMzU3MjU2.htl



Pictures:

-1+1, -2+1, -3+1 Parking System Solutions



-1+1, -2+1, -3+1 Parking System Solutions



-1+1, -2+1, -3+1 Parking System Solutions



-1+1, -2+1, -3+1 Parking System Solutions



-1+1, -2+1, -3+1 Parking System Solutions



-1+1, -2+1, -3+1 Parking System Solutions



-1+1, -2+1, -3+1 Parking System Solutions





 -1+1, -2+1, -3+1 Parking System Solutions



-1+1, -2+1, -3+1 Parking System Solutions



-1+1, -2+1, -3+1 Parking System Solutions



-1+1, -2+1, -3+1 Parking System Solutions



-1+1, -2+1, -3+1 Parking System Solutions



Structure and Size information:



-1+1, -2+1, -3+1 Parking System Solutions



-1+1, -2+1, -3+1 Parking System Solutions



Company Profile:

Our company is a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.

Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.

If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.



Here below is other main products of our company-1+1, -2+1, -3+1 Parking System Solutions
