Product Specifications:
| Brand Name | STMY |
| Model No. |
PJS(-1+1); 1 level above ground, 1 level underground in a pit PJS(-2+1); 1 level above ground, 2 levels underground in a pit PJS(-3+1); 1 level above ground, 3 levels underground in a pit |
| Type | Pit design parking system |
| Mode of Operations | Keys/Manual Control buttons |
| Car Capacity |
≤2000kgs; 2500kg |
|
Mode of drive |
Motor+Chain / Hydraulic +Chain |
| Car Size (L×W×H) |
5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm; |
|
Lifting speed |
5.6m/min |
|
Warning device |
Yes |
| Safeguard device | Whole protection and anti-falling hook device |
| Rise Time | 50s |
| Fall Time | 40s |
| Work Noise | < 80dB ( A ) |
| Voltage |
220V/240V/380V (cusomized) |
| Motor Power | 2.2KW |
| Maximum Working Pressure | 16 MPa |
| Machine Net Weight | No more than 4650kgs |
| Modes of operation |
Galvanized treatment and high-grade anti-corrosion paint |
| Color |
Red, Blue, Grey, Yellow etc. (customized according to user demand ) |
| Certification | ISO9001 and CE |
Actuating Device:
1. Motor + Chain + Car Loading Pallet
2. Motor + Steel Rope + Car Loading Pallet
3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet
Working Principle:

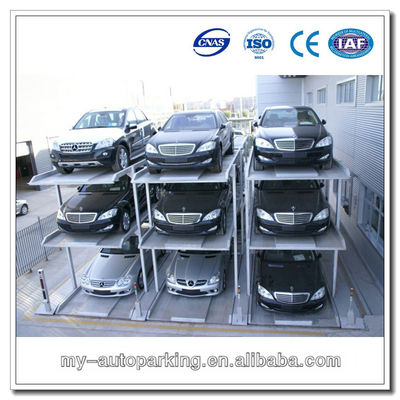

This is -1+1, -2+1, or -3+1 pit design parking system ( 1, 2, or 3 cars are underground in a pit, and 1 car above ground). The whole equipment can be lifted up and down as one unity, when the car platform is in the same line with the ground level, then the car can be collected or parked.
Characteristics:
Online Video
http://v.youku.com/v_show/id_XNjkzMzU3MjU2.htl
Pictures:
Structure and Size information:
