Product Details:
Payment & Shipping Terms:
|
Type: | Parking Lift |
---|
Product Specifications:
Brand Name | STMY |
Model No. |
PJS(-1+1); 1 level above ground, 1 level underground in a pit PJS(-2+1); 1 level above ground, 2 levels underground in a pit PJS(-3+1); 1 level above ground, 3 levels underground in a pit |
Type | Pit design parking system |
Mode of Operations | Keys/Manual Control buttons |
Car Capacity |
≤2000kgs; 2500kg |
Mode of drive |
Motor+Chain / Hydraulic +Chain |
Car Size (L×W×H) |
5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm; |
Lifting speed |
5.6m/min |
Warning device |
Yes |
Safeguard device | Whole protection and anti-falling hook device |
Rise Time | 50s |
Fall Time | 40s |
Work Noise | < 80dB ( A ) |
Voltage |
220V/240V/380V (cusomized) |
Motor Power | 2.2KW |
Maximum Working Pressure | 16 MPa |
Machine Net Weight | No more than 4650kgs |
Modes of operation |
Galvanized treatment and high-grade anti-corrosion paint |
Color |
Red, Blue, Grey, Yellow etc. ( customized according to user demand ) |
Certification | ISO9001 and CE |
Actuating Device:
1. Motor + Chain + Car Loading Pallet
2. Motor + Steel Rope + Car Loading Pallet
3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet
Working Principle:

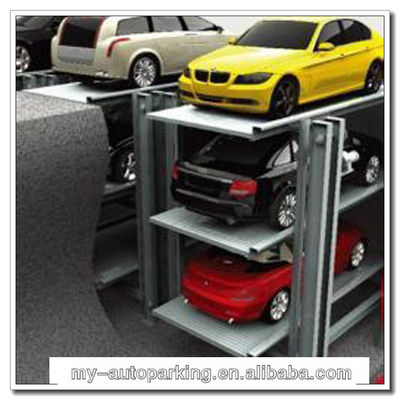

This is -1+1, -2+1, or -3+1 pit design parking system ( 1, 2, or 3 cars are underground in a pit, and 1 car above ground). The whole equipment can be lifted up and down as one unity, when the car platform is in the same line with the ground level, then the car can be collected or parked.
Characteristics:
Online Video
http://v.youku.com/v_show/id_XNjkzMzU3MjU2.htl
Pictures:
Structure and Size information:
Company Profile:
Our company is a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.
Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.
If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.
