Pit Design 2 Level Mechanical Parking Equipment Automatic Car Parking System

Pit Design 2 Level Mechanical Parking Equipment Automatic Car Parking System

China Pit Design 2 Level Mechanical Parking Equipment Automatic Car Parking System supplier

Large Image :  Pit Design 2 Level Mechanical Parking Equipment Automatic Car Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: PJS-1+1; PJS-2+1; PJS-3+1

Payment & Shipping Terms:

Minimum Order Quantity: 3 Sets
Price: $2000-2500
Packaging Details: Standard Export Package
Delivery Time: 30days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 sets/month
Detailed Product Description

Product Specifications:

Brand Name  QDMY
Model No.  QDMY-P-1+1(2 Levels) / QDMY-P-2+1(3 Levels)
Type  2-3 Levels pit design parking system
Mode of Operations  Manual Control buttons
Car Capacity

 ≤2000kgs

Mode of drive

 Motor+Chain / Hydraulic +Chain

Car Size  (L×W×H)

 5000mm×1850mm×1550mm

Lifting speed

 5.6m/min

Warning device

 Yes
Safeguard device  Hydraulic whole protection and anti-fall frame warning devices
Rise Time  50s
Fall Time  40s
Work Noise  < 80dB ( A )
Voltage

 220V/240V/380V

Motor Power  2.2KW
Maximum Working Pressure  16 MPa
Machine Net Weight  No more than 4650kgs
Modes of operation

 Galvanized treatment and high-grade anti-corrosion paint

Color

 Red, Blue, Grey, Yellow etc. ( customized

 according to user demand )

Certification  ISO9001 and CE



Actuating Device:

1. Motor + Chain + Car Loading Pallet

2. Motor + Steel Rope + Car Loading Pallet

3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet



Working Principle:

This parking system is designed 2-3 layers up and down as one unit.

The bottom car can go in and out directly. When the upper space needs to park a car,

the car in the bottom should be drive out.



Characteristics:

  • Simple operation
  • Safe and reliable
  • Convenient in and out of car
  • Ultra low noise
  • Small space occupation
  • Beautiful and fashionable in appearance
  • Easy and fast installation
  • Both suitable for home use and public use

Pictures:

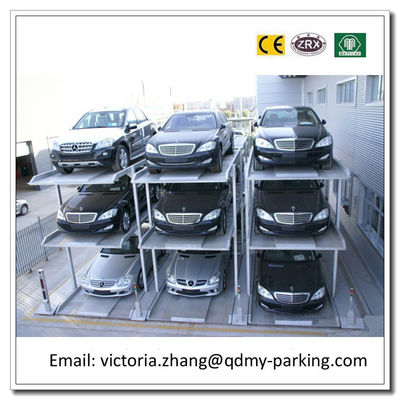

Pit Design 2 Level Mechanical Parking Equipment Automatic Car Parking System
