Product Details:
Payment & Shipping Terms:
|
Product Specifications:
| Brand Name | QDMY |
| Model No. | QDMY-P-1+1(2 Levels) / QDMY-P-2+1(3 Levels) |

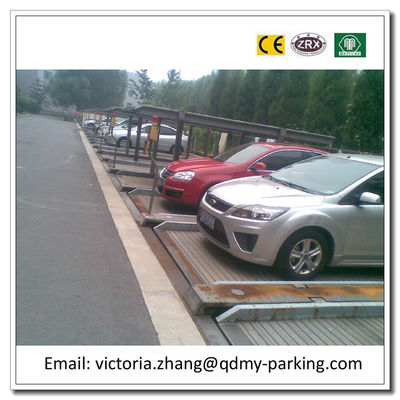

| Type | 2-3 Levels pit design parking system |
| Mode of Operations | Manual Control buttons |
| Car Capacity |
≤2000kgs |
|
Mode of drive |
Motor+Chain / Hydraulic +Chain |
| Car Size (L×W×H) |
5000mm×1850mm×1550mm |
|
Lifting speed |
5.6m/min |
|
Warning device |
Yes |
| Safeguard device | Hydraulic whole protection and anti-fall frame warning devices |
| Rise Time | 50s |
| Fall Time | 40s |
| Work Noise | < 80dB ( A ) |
| Voltage |
220V/240V/380V |
| Motor Power | 2.2KW |
| Maximum Working Pressure | 16 MPa |
| Machine Net Weight | No more than 4650kgs |
| Modes of operation |
Galvanized treatment and high-grade anti-corrosion paint |
| Color |
Red, Blue, Grey, Yellow etc. ( customized according to user demand ) |
| Certification | ISO9001 and CE |
Actuating Device:
1. Motor + Chain + Car Loading Pallet
2. Motor + Steel Rope + Car Loading Pallet
3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet
Working Principle:
This parking system is designed 2-3 layers up and down as one unit.
The bottom car can go in and out directly. When the upper space needs to park a car,
the car in the bottom should be drive out.
Characteristics:
Pictures:
Company Profile:
Qingdao Maoyuan Goup is a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.
Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.
If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.
Here below is other main products of our company
