Home ProductsTwo Post Tilt Parking Lift

Double Stack Parking System

Double Stack Parking System

China Double Stack Parking System supplier

Large Image :  Double Stack Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: QDMY-606

Payment & Shipping Terms:

Minimum Order Quantity: 2 Sets
Price: $1500-2100
Packaging Details: Standard Export Package
Delivery Time: 20-30days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 3000 sets/month
Detailed Product Description
Product Name: Car Parking Lift

Product Specifications:





Brand Name  QDMY
Model No.  QDMY-606
Type

 Two post tilting parking lift

Mode of Operation  Manual control buttons / Keys
Car Weight

 ≤2000kg

Car Size (L/W/H)

 ≤5000mm×1850mm×1550mm

Lifting Height

 1600-1850mm

Mode of Drive

 Hydraulic

Rise/Fall Time  24s / 20s
Motor Power  2.2KW

Working Voltage

 220V/1Ph, 380V/3Ph (according to user's  demand)
Warning Device  Yes
Safeguard Device  Fixed anti-fall frame warning devices
Control System Voltage

 AC24

Car Platform Thickness                    2.0mm
Outer Size  Please see below dimensions
Machine Weight  ≤1100kg
Surface Treatment

 Galvanized treatment and high-grade anti-corrosion

 paint

Color

 Red, Blue, Grey, Yellow etc. ( customized according to

 user demand )

Certification  ISO9001 and CE





Actuating Device:



Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet





Working Principle:

This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.



Characteristics:

  • Simple operation
  • Safe and reliable
  • Convenient in and out of car
  • Ultra low noise
  • Small space occupation
  • Beautiful and fashionable in appearance
  • Easy and fast installation
  • Both suitable for home use and public use



Adapted places

Underground basement, Apartment, Public Parking place, shopping mall, etc.

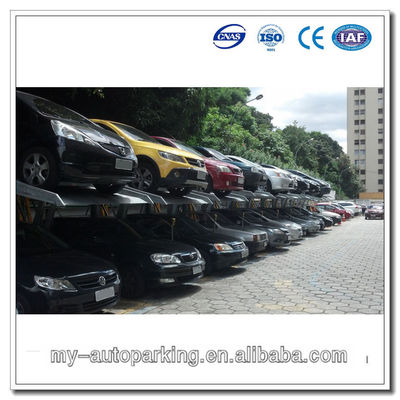

Pictures:

Double Stack Parking System



Double Stack Parking System





Double Stack Parking System



Double Stack Parking System



Double Stack Parking System



Double Stack Parking System



Double Stack Parking System



Double Stack Parking System



Double Stack Parking System



Structure and Dimensions:



Double Stack Parking System



(Give us your land size, we can make design for you!)

Double Stack Parking System





FAQ

 1.  What trade term you can accept?

----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).



2.   What payment term can you accept?

----Often we accept TT or LC.  For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...



3. How about the loading information and HS Code?

---For this model, 16 units can be loaded into 1x40'GP container;
---The HS code is 842890000

4. How about the lead time?
---30 to 45 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--This model of product is simple structure, usually we send installation drawings to the client, and they can install it themselves.

9. Can you install for us?
--We can send our engineer to your country to guide the installation. But your party need to find  local workers to do the installation work.
