Product Details:
Payment & Shipping Terms:
|
Product Specifications:
| Brand Name | QDMY |
| Model No. | QDMY-606 |
| Type |
Two post tilting parking lift |
| Mode of Operation | Manual control buttons / Keys |
| Car Weight |
≤2000kg |
|
Car Size (L/W/H) |
≤5000mm×1850mm×1550mm |
| Lifting Height |
1600-1850mm |
|
Mode of Drive |
Hydraulic |
| Rise/Fall Time | 24s / 20s |
| Motor Power | 2.2KW |
|
Working Voltage |
220V/1Ph, 380V/3Ph (according to user's demand) |
| Warning Device | Yes |
| Safeguard Device | Fixed anti-fall frame warning devices |
| Control System Voltage |
AC24 |
| Car Platform Thickness | 2.0mm |
| Outer Size | Please see below dimensions |
| Machine Weight | ≤1100kg |
| Surface Treatment |
Galvanized treatment and high-grade anti-corrosion paint |
| Color |
Red, Blue, Grey, Yellow etc. ( customized according to user demand ) |
| Certification | ISO9001 and CE |
Actuating Device:
Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet
Working Principle:
This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.
Characteristics:
Adapted places
Underground basement, Apartment, Public Parking place, shopping mall, etc.

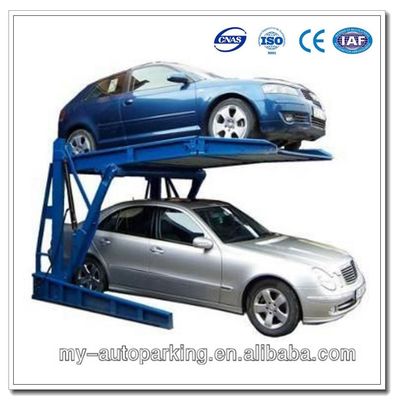

Pictures:
Structure and Dimensions:
(Give us your land size, we can make design for you!)
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
----Often we accept TT or LC. For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...
3. How about the loading information and HS Code?
