| Type: | Carport |
|---|
Product Specifications:
| Brand Name | STMY |
| Product Name | Two Post Parking Lift
(Can be independent or dependent with shared posts) |
| Model No. | QDMY-8023; QDMY-8027; QDMY-8032 |
| Mode of Drive | Hydraulic with Double Chain |
| Car Capacity | ≤2300kg, 2700kg, 3200kg |
| Lifting Height | 1800mm, 2100mm, 2132mm (Customized) |
| Mode of Operation | Manual buttons / Keys (Optional) |
| Motor Power | 2.2 Kw |
| Photoelectric Sensor | Prevent people or cars entering by mistake during operation |
| Anti-falling Device | Multi-level locking holes |
| Warning Device | Buzzer alarming during operation |
| Rise/Fall Time | 60/55s |
| Working Noise | < 60dB ( A ) |
| Voltage | 110V/220V/230V/240V/380V/415V (Customized ) |
| Platform | Galvanized wave platform |
| Surface Treatment | High-grade anti-corrosion powder coating |
| Color | Red, Blue, Grey, Yellow, Black, etc. (Customized ) |
| HS Code | 84254290 |
| Certificate | ISO9001 and CE |
| Warranty Term | 12 months for electrical parts, 5 years for structure |
Actuating Device:
Working Principle:
This parking lift is designed as 2 spaces. The bottom car can go in and out directly. When the space in the down level is spared, the space in the upper level will fall to ground. Then the car will go out and in freely.
Characteristics:

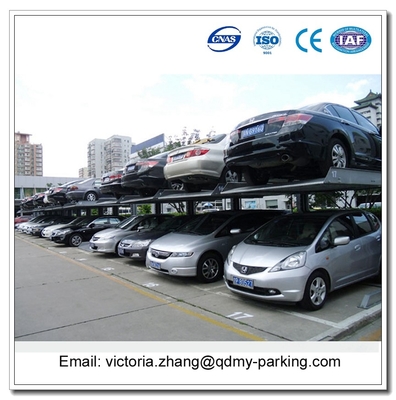

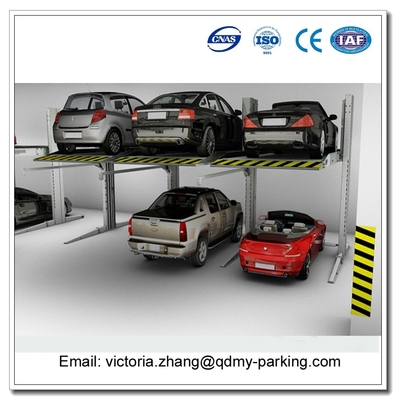

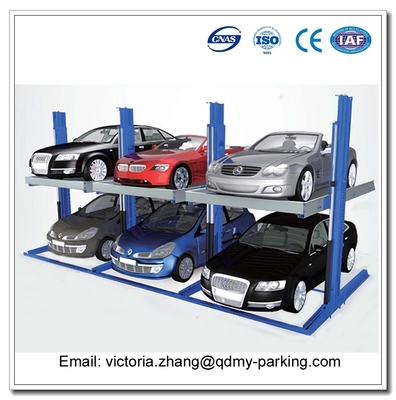

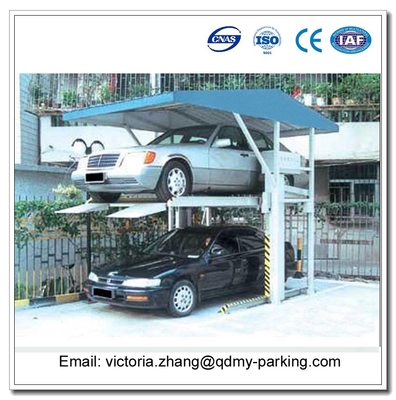

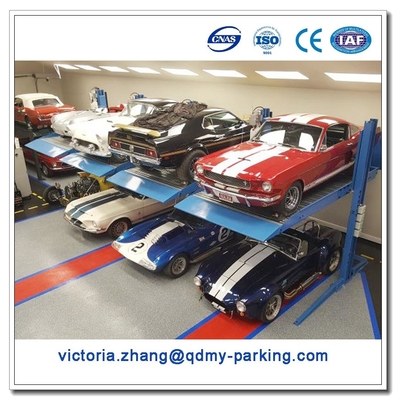

Pictures:
Online Video Show:
Single Unit : https://youtu.be/-r-jBQ0E7Z8
Sharing Column : https://youtu.be/4VA67AwriFU
Installation Video: https://youtu.be/NcR42Q6tYlM
Factory Demo Video: https://youtu.be/IS29O-k1EPQ
FAQ
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.
3. How about the loading information and HS Code?
---9 sets/20’GP container; 18 sets/40’GP container (Unit A)
---12 sets/20’GP container; 24 sets/40’GP container (Unit B)
