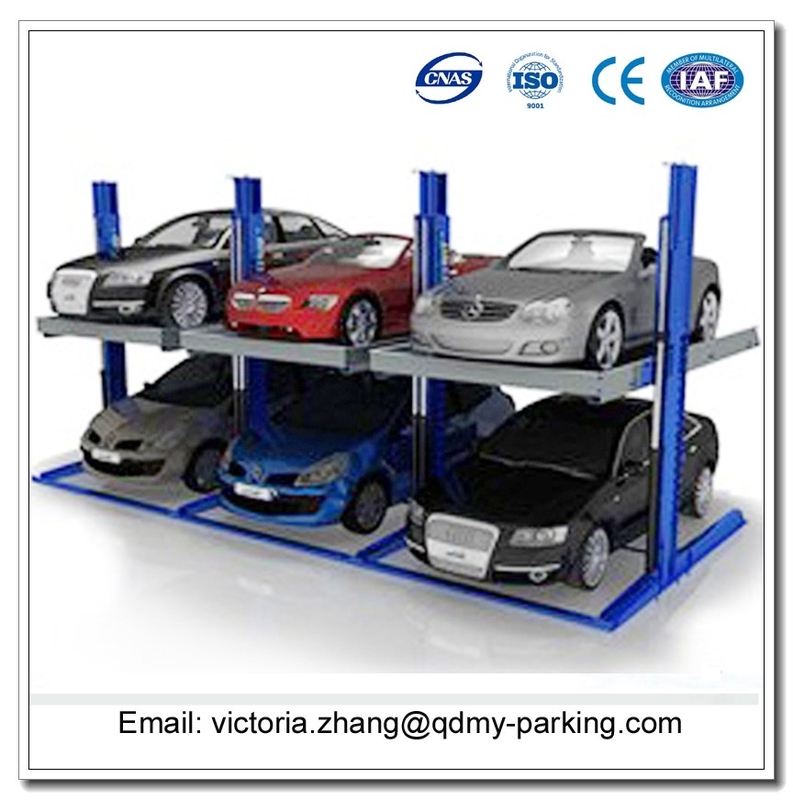

2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System

2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System

China 2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System supplier

Large Image :  2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: QDMY-8023; QDMY-8027; QDMY-8032

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $1500-2200/Set
Packaging Details: Standard Export Package
Delivery Time: 20-30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 3000 sets/month
Detailed Product Description

Product Specifications:



Brand Name STMY
Product Name Two Post Parking Lift

(Can be independent or dependent with shared posts)

Model No. QDMY-8023; QDMY-8027; QDMY-8032
Mode of Drive Hydraulic with Double Chain
Car Capacity ≤2300kg, 2700kg, 3200kg
Lifting Height 1800mm, 2100mm, 2132mm (Customized)
Mode of Operation Manual buttons / Keys (Optional)
Motor Power 2.2 Kw
Photoelectric Sensor Prevent people or cars entering by mistake during operation
Anti-falling Device Multi-level locking holes
Warning Device Buzzer alarming during operation
Rise/Fall Time 60/55s
Working Noise < 60dB ( A )
Voltage 110V/220V/230V/240V/380V/415V (Customized )
Platform Galvanized wave platform
Surface Treatment High-grade anti-corrosion powder coating
Color Red, Blue, Grey, Yellow, Black, etc. (Customized )
HS Code 84254290
Certificate ISO9001 and CE
Warranty Term 12 months for electrical parts, 5 years for structure



Actuating Device:

  • Two stage dual-cylinder lifting system, hydraulic direct driven, chain-balancing system;
  • Electric or manual lock release system; multi-levels locking devices (3 or 5 holes);
  • Adjustable parking heights, optional remote control;
  • Optoelectronic switch device (prevent people or car miss-entrance during operation);
  • Nice appearance of electric powder coating (color optional) or hot dipped galvanized surface treatment;
  • Optional galvanized wave platform or diamond plate;
  • Buzzer and warning light flashing during operation;
  • The control button can choose long time press or jog buttons;
  • High polymer polyethylene slide blocks, self-lubricating, wear-resistance and high temperature resistance.
  • Suitable for commercial and residential use.



Working Principle:

This parking lift is designed as 2 spaces. The bottom car can go in and out directly. When the space in the down level is spared, the space in the upper level will fall to ground. Then the car will go out and in freely.



Characteristics:

  • Simple operation
  • Safe and reliable
  • Convenient in and out of car
  • Ultra low noise
  • Small space occupation
  • Beautiful and fashionable in appearance
  • Easy and fast installation
  • Both suitable for home use and public use



Pictures:

2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System

2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System

2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System



Online Video Show:

Single Unit : https://youtu.be/-r-jBQ0E7Z8

Sharing Column : https://youtu.be/4VA67AwriFU

Installation Video: https://youtu.be/NcR42Q6tYlM

Factory Demo Video: https://youtu.be/IS29O-k1EPQ



FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---The HS code is 842542900

---9 sets/20’GP container; 18 sets/40’GP container (Unit A)

---12 sets/20’GP container; 24 sets/40’GP container (Unit B)


4. How about the lead time?
---30 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
----This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.

Remarks:
Please send us your land layout, our engineer will design drawings and provide best parking solutions for you!


Company Profile:

We are a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.

Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.

If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.



Here below are other main products of our company:2300KG Basement Car Stack Parking System/ Car Stacking System/ Double Stack Parking System
