Product Details:
Payment & Shipping Terms:
|
Product Specifications:
| Brand Name | STMY |
| Model No. | QDMY-3-4P |
| Product Name |
Four Post Quadruple Parking Lift |
| Mode of Operations | Manual Buttons /Keys |
| Car Capacity |
1F: No limited ; 2F:≤2500kg; 3F&4F≤2000kg |
|
Mode of drive |
Hydaulic & Wire Rope |
|
Unlock method |
Electric |
|
Car Size |
4F: 5000 x 1950 x 1600 (mm) 2F&3F: 5000 x 1950 x 1550 (mm) 1F: 5300 x 1950 x 1800 (mm) |
|
Warning device |
Yes |
| Safeguard device |
Whole process protection and anti-falling device |
| Rise Time | 50s |
| Fall Time | 40s |
| Work Noise | < 65dB ( A ) |
| Power |
2.2KW 380V 50Hz 3 Phases (Customized for different country's request) |
|
Oil Trays |
9 nos. of plastic oil trays and 8 plastic corrugated trays for free. |
| Treatment |
Powder Coating (color optional) |
| HS Code |
84289020 |
| Certification | ISO9001 and CE |
Descriptions:
1. Each unit can park 4 cars;
2. Simple transmission structure, the runways are equipped with oil trays.
3. Column is one cylinder operation design, two widths optional for different models.
4. Hydraulic cylinder & wire rope drive, top 4 mechanical locks, more safer.
5. Electric multi-stage lock, steel wire rope anti-falling lock device and electrolytic lock with the perfect combination of
sliding inside the column for double protection.
6. Aluminum shell motor, plastic oil tank;
7. Mold machining through the whole process so that the parts are universal and interchangeable
8. Pass 120% capacity dynamic load text and 150% static load test.
9. Italian oil seal to make sure no oil leakage, inner anti-explosion valve in case of platform drop
10. Optional ultrared rays alarm device, in case of unguarded entrance
11. High grade anti-crossion spray paint treatment, beautiful color, and durable to use.
Note: This model cannot share columns, but the adjacent columns can be welded together and share the column base plate, and the car ramps are removable.

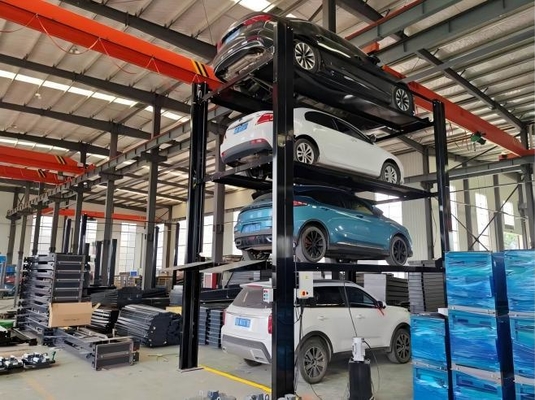

Pictures:
