Home ProductsScissor Type Car Elevator

Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement

Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement

China Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement supplier

Large Image :  Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO9001 & CE
Model Number: QDMY-SJG Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: $7000-12000/ per set
Packaging Details: Standard Export Package
Delivery Time: 20-30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 Sets/month
Detailed Product Description
Product Name: Scissor Type Car Elevator Catagory: Scissor Lift Table
Mode Of Drive: Hydraulic Cylinder Lifting Capacity: 2-8 Tons

Product Specifications:

Brand Name STMY
Model No. QDMY-SJG Series
Type Hydraulic Scissor Lift Platform
Mode of Operations Manual buttons/Keys
Car Capacity 2000-8000kgs (Customized)
Mode of drive Hydraulic
Car Size (L×W×H) 5000mm×1850mm×1550mm
5000mm×1850mm×2050mm; (Customized)
Platform Size (LxW) 5500mm x 2800mm (Customized)
Lifting Height 2200mm (Customized)
Safeguard device Whole protection and anti-falling lock device
Lifting Speed 4-6m/min
Stop at any height Yes, can be set
Work Noise < 60dB ( A )
Electricity 220-415V
(Customized for different country)
Motor Power 5.5-7.5KW
Maximum Working Pressure 16 MPa
HS Code 84289020
Surface Treatment High-grade anti-corrosion paint
Color Red, Blue, Grey, Yellow etc.
(customized according to user demand )
Certification ISO9001 and CE



Introduction:

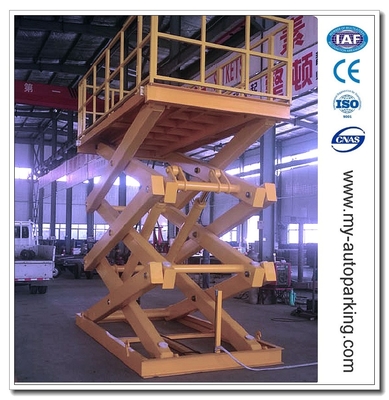

This fixed scissor type hydraulic lifting platform is a kind of goods lifting equipment with good lift stability and wide range of application. This product is heavy carrying capacity, a wide range of travel, safe and efficient.



Application:

Widely used for car elevator lifting purpose, cargo transport, handling, transfer in logistic process; used in materials up and down in production lines with height differences; used in adjusting workpieces’ height when doing assembly; Used in filling materials for machine tools; Used in warehouse storage cooperated with forklift, carrier etc…



Characteristics:

Optimized design of structure, to effectively reduce the starting lift height, to lifting the travel height into maximum range;

Strong rigidity lifting mechanism, to ensure a very high lifting stability;

Reliable lifting mechanism, stable hydraulic system, suitable for the lifting platform for frequent work;

Steel after blasting process, improve the quality of welding and paint adhesion;

Grinding cylinder wall equipped with the Japan seals, the hydraulic cylinder has excellent sealing performance;

Compact hydraulic station design, integrated and internal design, makes the equipment compact and beautiful.



Security Devices:

1. Emergency protection: There is emergency emergency stop function outside the distribution box. If the equipment has an unexpected situation in the working state, pressing the emergency stop button can ensure that the equipment does not cause secondary accidents;

2. Anti-falling protection: the device is designed with anti-drop system, controlled by anti-drop push rod motor, no matter whether the platform stops at any layer, it is as smooth as stopping on the ground;

3. Cylinder protection: The bottom of the cylinder is equipped with a blasting device. If the oil pipe is broken under the working condition, the explosion-proof valve at the bottom of the cylinder will be in a corresponding explosion state to prevent the cylinder from falling instantaneously;

4. Line protection: Line protection means that the whole set of lines are wrapped by special insulated tubes to prevent direct connection between lines and lines to prevent line leakage and power.



Pictures:
Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement

Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement

Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement

Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement

Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement

Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement

Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement





Sample Drawings:
Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement

Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement

Car Lift for Buildings Outdoor/Parking Lifts Manufacturers/Home Use Car Lift/Car Garage Lift for Basement
Remarks:

1. There is no standard drawings for this product, platform size, lifting weight and traveling height are customized.

2. This product can work as car elevator or lifting for any cargo.

3. The lifting weight and travelling height will decide how many scissors to use.

4. For heavy duty or several lifts are installed very closely, we will consider to add auxiliary guide rails to ensure more stable of system.



FAQ

1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your port name).
2. What payment term can you accept?

---30%TT in advance, and 70%TT before shipping.
3. How about the loading information and HS Code?

---The HS code is 84289020
---Container information depends on machine size.
4. How about the lead time?
---20-30 days (In peak season, 45 days).
5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.
6. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;
7. How about the installation?
---This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.
8. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.

9. What are the certificates?

---ISO9001 & CE.
