Product Details:
Payment & Shipping Terms:
|
| Product Name: | Scissor Type Car Elevator | Catagory: | Scissor Lift Table |
|---|---|---|---|
| Mode Of Drive: | Hydraulic Cylinder | Lifting Capacity: | 2-8 Tons |
Product Specifications:
| Brand Name | STMY |
| Model No. | QDMY-SJG Series |
| Type | Hydraulic Scissor Lift Platform |
| Mode of Operations | Manual buttons/Keys |
| Car Capacity | 2000-8000kgs (Customized) |
| Mode of drive | Hydraulic |
| Car Size (L×W×H) | 5000mm×1850mm×1550mm 5000mm×1850mm×2050mm; (Customized) |
| Platform Size (LxW) | 5500mm x 2800mm (Customized) |
| Lifting Height | 2200mm (Customized) |
| Safeguard device | Whole protection and anti-falling lock device |
| Lifting Speed | 4-6m/min |
| Stop at any height | Yes, can be set |
| Work Noise | < 60dB ( A ) |
| Electricity | 220-415V (Customized for different country) |
| Motor Power | 5.5-7.5KW |
| Maximum Working Pressure | 16 MPa |
| HS Code | 84289020 |
| Surface Treatment | High-grade anti-corrosion paint |
| Color | Red, Blue, Grey, Yellow etc. (customized according to user demand ) |
| Certification | ISO9001 and CE |
Introduction:
This fixed scissor type hydraulic lifting platform is a kind of goods lifting equipment with good lift stability and wide range of application. This product is heavy carrying capacity, a wide range of travel, safe and efficient.
Application:
Widely used for car elevator lifting purpose, cargo transport, handling, transfer in logistic process; used in materials up and down in production lines with height differences; used in adjusting workpieces’ height when doing assembly; Used in filling materials for machine tools; Used in warehouse storage cooperated with forklift, carrier etc…
Characteristics:
Optimized design of structure, to effectively reduce the starting lift height, to lifting the travel height into maximum range;
Strong rigidity lifting mechanism, to ensure a very high lifting stability;
Reliable lifting mechanism, stable hydraulic system, suitable for the lifting platform for frequent work;
Steel after blasting process, improve the quality of welding and paint adhesion;
Grinding cylinder wall equipped with the Japan seals, the hydraulic cylinder has excellent sealing performance;
Compact hydraulic station design, integrated and internal design, makes the equipment compact and beautiful.
Security Devices:
1. Emergency protection: There is emergency emergency stop function outside the distribution box. If the equipment has an unexpected situation in the working state, pressing the emergency stop button can ensure that the equipment does not cause secondary accidents;
2. Anti-falling protection: the device is designed with anti-drop system, controlled by anti-drop push rod motor, no matter whether the platform stops at any layer, it is as smooth as stopping on the ground;
3. Cylinder protection: The bottom of the cylinder is equipped with a blasting device. If the oil pipe is broken under the working condition, the explosion-proof valve at the bottom of the cylinder will be in a corresponding explosion state to prevent the cylinder from falling instantaneously;
4. Line protection: Line protection means that the whole set of lines are wrapped by special insulated tubes to prevent direct connection between lines and lines to prevent line leakage and power.

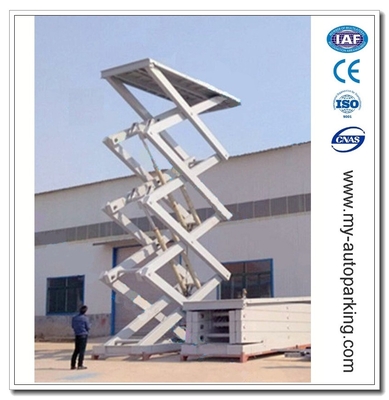

Pictures:
Sample Drawings:
Remarks:
1. There is no standard drawings for this product, platform size, lifting weight and traveling height are customized.
2. This product can work as car elevator or lifting for any cargo.
3. The lifting weight and travelling height will decide how many scissors to use.
4. For heavy duty or several lifts are installed very closely, we will consider to add auxiliary guide rails to ensure more stable of system.
