Home ProductsTwo Post Pit Design Parking Lift (Hydraulic & Chain)

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

China Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage supplier
Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage supplier Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage supplier Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage supplier

Large Image :  Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO and CE
Model Number: QDMY-2-5B, QDMY-4-10, QDMY-6-15

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $7000-2000/Set
Packaging Details: Standard Export Package
Delivery Time: 30 Days
Payment Terms: 30%TT as deposit, and 70% balance before shipping
Supply Ability: 1000 Sets / month
Detailed Product Description
Product Name: Pit Design Cantilever Parking Lift Mode Of Drive: Hydraulic
Car Nos.: 2, 4, 6 Category: Car Parking Lifts, Car Parking Systems

Specifications:

 Brand Name  STMY
 Product Name

 Pit Design Car Stacker

 Model No.

 QDMY-2-5B, QDMY-4-10, QDMY-6-15

 Car Weight  ≤2500kg
 Car Size (L/W/H)

≤5000x1850x1550/1900 (mm)

 Mode of Drive

 Hydraulic

 Motor Power

 2.2KW/3.7KW

 Lifting Speed

 4-6m/min

 Working Voltage  110V/220V/380V/415V Single/3Phases

 Modes of Operation

 Manual Control buttons / Keys

 Safeguard Devices

 Whole protection and anti-falling device

 Car Platform

 Galvanized wave plate

 Surface Treatment  Powder coating/Spray paint/Hot galvanized

 Color

 Grey, blue, green, white, yellow…(Optional)

 Car Platform Thickness                 CE & ISO

 HS CODE

 84289020
 Package

 Export standard packing

(steel frame and foam film)

 Container Information

 4 sets/20’GP container; 10 sets/40’HQ container

 Warranty

 12 months for electrical key parts,

 5 years for structure.

 Certification  ISO9001 and CE



Working Principle:

The spaces of top, middle and bottom are united and lifted together. Usually, the bottom and middle level spaces are underground in the pit. The top level space is in the same line with the ground. The top level car can park in and out directly. When the system is lifted up, the drive can pick or park car easily.



Introduction:

1. Simplicity of operation, economic and practical design, one parking unit for 2, 4 or 6 cars.

2. Pit type stacker,can be used in household or office building parking lot.

3. Sharing post design, space saving, economic and steadier.

4. No steel structure above ground, simple and graceful.

5. The upper and lower space are fixed together, normally, the system lower to the pit, you can park car on upper space directly or rise the system to park the car on lower space.

6. Multiple safety protection device.

7. Optional hydraulic oil cylinder or motor & chain driven mode.

8. Wave plate or diamond plate are optional ,you can choose hot galvanizing,electroplating or powder spray.

9. Mold machining through the whole process so that the parts are universal and interchangeable.

10. Pass 120% capacity dynamic load text and 150% static load test.

11.Italian oil seal to make sure no oil leakage,inner anti-explosionvalve in case of platform drop

12. Optional ultrared rays alarm device, in case of unguarded entrance

13. The structure, such as total length, height and width can be customized to meet different parking places.



Application:

Widely Using in Residential Area, Apartment, Basement Parking Lot, School, Hotel, Office Buildings, etc...

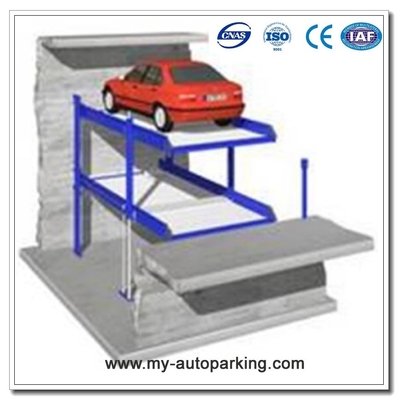

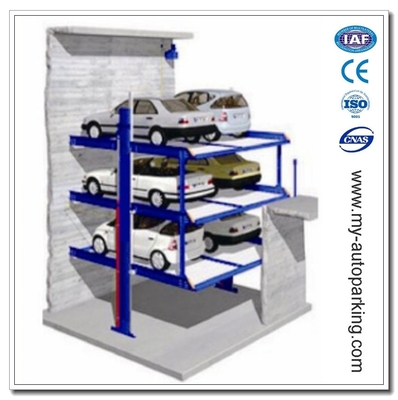

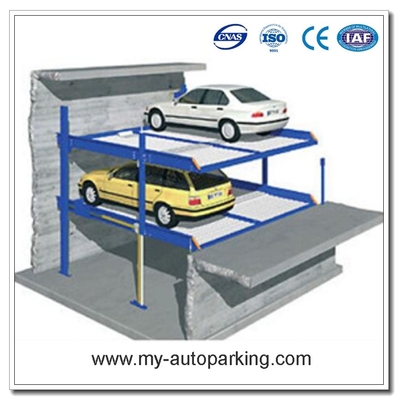

Photos:

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage





                                                                                   QDMY-6-15

Double Level Pit Car Parking Lifts/Car Underground Lift/Basement Parking Garage/Hydraulic Stacker/Cantilever Garage

                                        Note: height and width can be customized for different car types.
