23. 5-15 Floors Fully Automatic Vertical Lifting Parking System

Product Specifications

Introduction:

1) This Fully Automatic Vertical Lifting Parking System can be customized for different land size requirements. Each floor can be set 4-12 nos. of parking spaces and can be built up to 5-15 floors, which is 10 times more than the normal surface parking lot. The system can be arranged all above ground, all underground or half above ground & half underground. The nos. of entrances and exits can be set flexibly according to customer request. (The nos. Can be maximum equals to the nos. of parking spaces per floor). There is a very good parking reservation function.

2) When storing a car, just need to drive the vehicle to the car storage platform of entrance. Then swipe the card, the intelligent handling trolley will automatically move the vehicle to the designated position. When picking a car, choose to swipe card or mobile phone APP operation, the intelligent handling trolley will automatically move the vehicle to exit parking space, and the driver will take the car out without reversing.

3) This vertical lifting parking system is a totally closed intelligent parking garage, stable handling platform, advanced comb-tooth exchange method, high-efficiency action of lifting, traversing and rotation, the whole process is simple to operate, the operation efficiency is high, and the maximum access car time is only 90 seconds. Compared with traditional semi-automatic garages, it can realize mobile phone APP reservation access, license plate recognition, empty parking space indication, vehicle in-position display, automatic centering, and parking space timing charging.

Working Principle:

There are two parking rows in parallel in each floor. The middle part is the lift cabinet integrated with lifting platform, rotary system, leveling system and carrier. When storing or retrieving one car, the carrier will carry the car between the entrance, track and the parking area. The action of lifting, traversing, turning will be finished by the lifter at the same time.

Adapted Places:

Public parking place, hotels, shopping mall, hospitals, commercial center, Residential parking lot, apartment, etc...

Major Components:

The equipment consists of six major components, including Steel Structure, Car Lifting & Turning System, Handling Carrier, an Access Platform, Electrical System and Operating system.

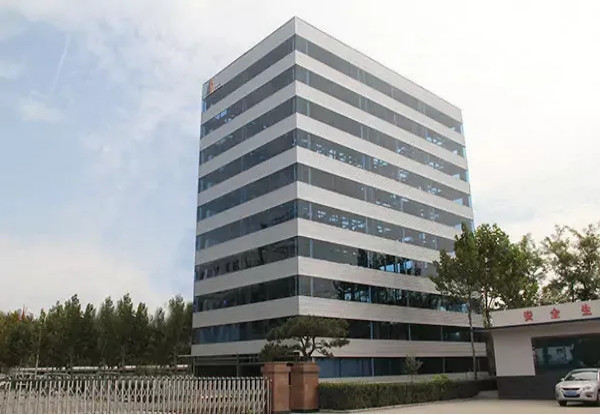

Case Photos:

Sample Drawings:

 Important Tips:

1) Can do 5 to 15 floors.

2) Can do all steel structure (we provide), or mixed steel & concrete structure. (we provide steel structure part, the concrete structure part will be built by customer themselves at local.)

3) Can do structure all above ground, half above & half underground, or all underground. (depends on customer request).

4) We can do some floors for SUVs or 100% SUVs spaces (according to customer's request).
