Product Details:
Payment & Shipping Terms:
|
| Name: | 1 Post Car Lift | Type: | Single Post Car Lifts For Sale |
|---|---|---|---|
| Usage: | Single Post Hydraulic Lift | Category: | Single Post Car Lift |
Single Post Hydraulic Cylinder Car Parking Lift for Home Garages
Specifications:
| Brand Name | STMY |
| Product Name |
Single Post Parking Lift |
| Model No. |
DSPP607, DSPP609 |
| Car Weight | ≤2500kg; 3200kg |
| Car Size (L/W/H) |
2F: ≤5000x1850x1550(mm) 1F: ≤5000x1850x1700/1900(mm) |
|
Mode of Drive |
Hydraulic & Chain |
| Motor Power |
2.2KW |
|
Lifting Speed |
4-6m/min |
| Working Voltage | 110V/220V/380V/415V Single/3Phases |
|
Modes of Operation |
Manual control buttons / Keys |
|
Safeguard Devices |
Whole protection and anti-falling devices |
|
Car Platform |
Galvanized wave plate (Customized for diamond pattern plate) |
| Surface Treatment | Powder coating/Spray paint/Hot galvanized |
|
Color |
Grey, blue, green, white, yellow…(Optional) |
| Car Platform Thickness | CE & ISO |
|
HS CODE |
84289020 |
| Package |
Export standard packing (steel frame and foam film) |
| Container Information |
If use diamond pattern plate: 4 sets/20’GP; 8 sets/40’GP container If use glavanized car plate 8 sets/20’GP; 16 sets/40’GP container |
| Warranty |
12 months for electrical key parts, 5 years for structure. |
| Certification | ISO9001 and CE |
Actuating Device:
Hydraulic Pump+Cylinder+Chain+Car Loading Pallet
Introduction:
1. Space-saving single post design, free entrance and exit for driver;
2. Single hydraulic cylinder, chain-driven system, faster lifting and lowering speed;
3. Single electric or manual lock release system, safe and reliable;
4. Wear-resistant, heat-resistant and high strength macromolecular polyethylene slide blocks;
5. Optional wave plat or diamond plate;
6. Mold machining through the whole process so that the parts are universal and interchangeable;

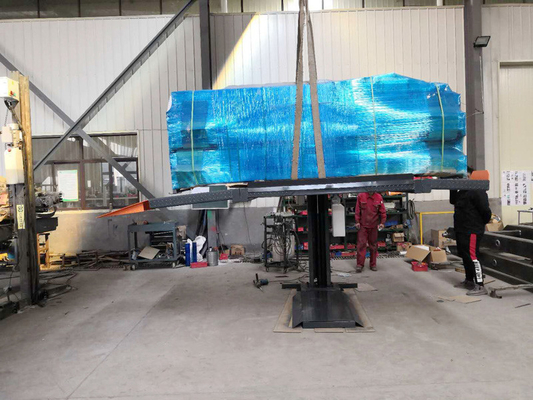

7. Pass 120% capacity dynamic load test and 150% capacity static load test;
8. Italian oil seal to make sure no oil leakage;
9. Solenoid valve has the emergency manual lock release function;
10. Optional 24v control box, solenoid valve and electromagnet.
Application:
Widely Using in Residential Area, Apartment, Basement Parking Lot, School, Hotel, Office Buildings, Car Stores, etc...
Online Video Show:
Pictures:

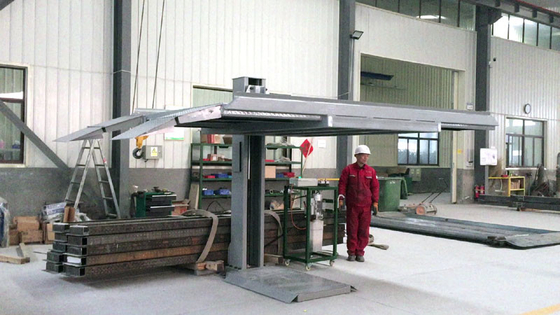

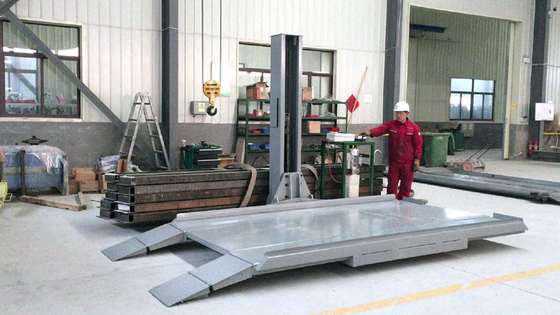

For diamond pattern plate type, see below photos.
Dimensions:
(Remarks: if needs diamond pattern plate, please contact us)
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
----Often we accept TT or LC. For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...
3. How about the loading information and HS Code?
---If use diamond pattern plates: 4 sets/20'GP container; 8 sets/40'GP container
---If use galvanized car plates: 8 sets/20'GP container; 16 sets/40'GP container
