Product Details:
Payment & Shipping Terms:
|
Name: | Single Post Auto Lift | Type: | Single Post Automotive Lift |
---|---|---|---|
Usage: | Single Post Mobile Lift | Category: | Parking Lifts |
Single Post Automotive Lift /Mobile Car Lifts for Home Garage for Sale
Specifications:
Brand Name | STMY |
Product Name |
Single Post Parking Lift |
Model No. |
DSPP607, DSPP609 |
Car Weight | ≤2500kg; 3200kg |
Car Size (L/W/H) |
2F: ≤5000x1850x1550(mm) 1F: ≤5000x1850x1700/1900(mm) |
Mode of Drive |
Hydraulic & Chain |
Motor Power |
2.2KW |
Lifting Speed |
4-6m/min |
Working Voltage | 110V/220V/380V/415V Single/3Phases |
Modes of Operation |
Manual control buttons / Keys |
Safeguard Devices |
Whole protection and anti-falling devices |
Car Platform |
Galvanized wave plate (Customized for diamond pattern plate) |
Surface Treatment | Powder coating/Spray paint/Hot galvanized |
Color |
Grey, blue, green, white, yellow…(Optional) |
Car Platform Thickness | CE & ISO |
HS CODE |
84289020 |
Package |
Export standard packing (steel frame and foam film) |
Container Information |
If use diamond pattern plate: 4 sets/20’GP; 8 sets/40’GP container If use glavanized car plate 8 sets/20’GP; 16 sets/40’GP container |
Warranty |
12 months for electrical key parts, 5 years for structure. |
Certification | ISO9001 and CE |
Actuating Device:
Hydraulic Pump+Cylinder+Chain+Car Loading Pallet
Introduction:
1. Space-saving single post design, free entrance and exit for driver;
2. Single hydraulic cylinder, chain-driven system, faster lifting and lowering speed;
3. Single electric or manual lock release system, safe and reliable;
4. Wear-resistant, heat-resistant and high strength macromolecular polyethylene slide blocks;
5. Optional wave plat or diamond plate;
6. Mold machining through the whole process so that the parts are universal and interchangeable;
7. Pass 120% capacity dynamic load test and 150% capacity static load test;
8. Italian oil seal to make sure no oil leakage;
9. Solenoid valve has the emergency manual lock release function;
10. Optional 24v control box, solenoid valve and electromagnet.
Application:
Widely Using in Residential Area, Apartment, Basement Parking Lot, School, Hotel, Office Buildings, Car Stores, etc...
Online Video Show:

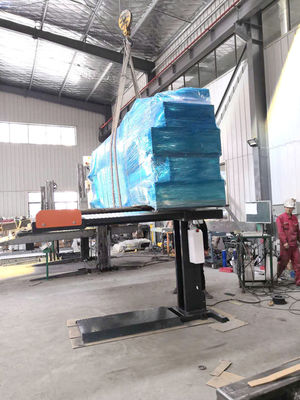

Pictures:
For diamond pattern plate type, see below photos.
Dimensions:
(Remarks: if needs diamond pattern plate, please contact us)
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
----Often we accept TT or LC. For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...
3. How about the loading information and HS Code?
---If use diamond pattern plates: 4 sets/20'GP container; 8 sets/40'GP container
---If use galvanized car plates: 8 sets/20'GP container; 16 sets/40'GP container
Our company is a professional company including development, production, and sales, etc., specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.
Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.
If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.
