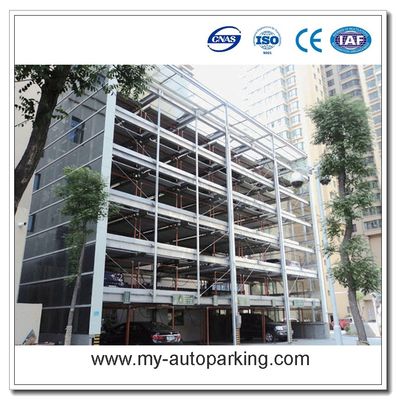

Hydraulic Puzzle Car Parking System

Hydraulic Puzzle Car Parking System

China Hydraulic Puzzle Car Parking System supplier

Large Image :  Hydraulic Puzzle Car Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: PSH2-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $2000-4000
Packaging Details: Standard Export Package
Delivery Time: 30-45 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 5000 car slots / month
Detailed Product Description

Product Specifications:


Brand Name  STMY
Model No.



 Hydraulic Puzzle Car Parking System  (2-12 Levels )

Mode of Operations  LCD/IC card/Manual
Car Capacity

 ≤2000kgs; ≤2500kg

Mode of drive

 Hydraulic+Steel Rope

Car Size  (L×W×H)

 5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm

Lifting speed

 4-22.5 KW  8-42m/min

Warning device

Safeguard device

 Whole protection and anti-falling frame device

Rise Time  50s
Fall Time  40s
Work Noise  < 65dB ( A )

 220V/240V/380V/415V (Customized for different countries' demand)

Motor Power  4-22.5KW
Maximum Working Pressure  16 MPa
Malfunction Indication  Fault diagnosis by computer, liquid crystal display

Spray Zinc firstly and then Spray-paint second time (Twice)


 Red, Blue, Grey, Yellow etc. ( customized

 according to user demand )

Certification  ISO9001 and CE


Actuating Device:

1. Motor + Chain + Car Loading Pallet

2. Motor + Steel Rope + Car Loading Pallet

3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet


Working Principle:

The equipment is designed with multi-levels and multi-columns smart puzzle parking system. It is designed with several empty spaces for exchanging spaces for other vehicles in each PLC unit. All spaces can move vertically or horizontally by the drive of hydraulic except the space in the top level. The top level cars can only move vertically. When a car needs to park or release, all spaces under this car will move automatically to form a free channel under this space, in this case, the space will go up and down freely. When it reaches the ground, the car will be driven out and in easily.



Take full use of land to raise more parking spaces;

Reliable hydraulic fast drive mode;

High speed and fast pick cars;

A whole system for safety protection for cars or personals;

Saving energy and environmental protection;

Advanced PLC micro-controller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons;

Fashionable and elegant appearance will can be easily in harmony with surrounding environment.


Protection Devices:

Including under voltage protection;

Wrong or lack phase protection;

Motor overload safety protection;

Overtime/short time safety protection;

Vehicle positioning device;

Vehicle length detection and entrance photoelectric safety device;

Warning light when operation;

Emergency stop device;

Power-off brake;

Fault diagnosis display on liquid;

The limits switch status tracking detection.


Adapted Places:

Residential parking lot, apartment,public parking place,hotels,schools,shopping mall,commercial center and office buildings,etc...


Online video link:




Hydraulic Puzzle Car Parking System

Hydraulic Puzzle Car Parking System

Hydraulic Puzzle Car Parking System

Hydraulic Puzzle Car Parking System

Hydraulic Puzzle Car Parking System

Hydraulic Puzzle Car Parking System

Hydraulic Puzzle Car Parking System

Hydraulic Puzzle Car Parking System


Sample Drawings:

Hydraulic Puzzle Car Parking System

Remarks:  Please send us your land layout,  our engineer will design drawings and provide best parking solutions for you!



1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---For this model, 16 car spaces can be loaded into 1x40'open top container.
---The HS code is 84289020.
4. How about the lead time?
---30 to 60 days (according to order quantity);
5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;
7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;
8. How about the installation?
--We will send 1-2 engineers to your country to guide the installation, commissioning, training your staff.
