Home ProductsPuzzle Parking System (Hydraulic)

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

China Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System supplier

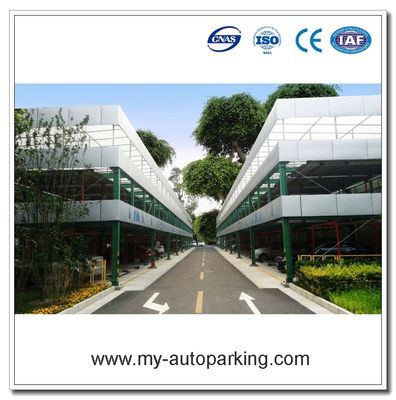

Large Image :  Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: PSH2-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $2000-4000
Packaging Details: Standard Export Package
Delivery Time: 30-45 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 5000 sets/month
Detailed Product Description

Product Specifications:



Brand Name STMY
Model No.

PSH2, PSH3, PSH4, PSH5, PSH6, PSH7, PSH8,

PSH9, PSH10,PSH11,PSH12

Type Hydraulic Puzzle Car Parking System (2-12 Levels )
Mode of Operations LCD/IC card/Manual
Car Capacity ≤2000kgs; ≤2500kg
Mode of drive Hydraulic+Steel Rope
Car Size (L×W×H)                                                        5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm
Lifting speed 4-22.5 KW 8-42m/min
Warning device Yes
Safeguard device Whole protection and anti-falling frame device
Rise Time 50s
Fall Time 40s
Work Noise < 65dB ( A )
Voltage

220V/240V/380V/415V

(Customized for different countries' demand)

Motor Power 4-22.5KW
Maximum Working Pressure 16 MPa
Malfunction Indication Fault diagnosis by computer, liquid crystal display
Treatment Spray Zinc firstly and then Spray-paint second time (Twice)
Color

Red, Blue, Grey, Yellow etc. ( customized

according to user demand )

Certification ISO9001 and CE



Actuating Device:

1. Motor + Chain + Car Loading Pallet

2. Motor + Steel Rope + Car Loading Pallet

3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet



Working Principle:

The equipment is designed with multi-levels and multi-columns smart puzzle parking system. It is designed with several empty spaces for exchanging spaces for other vehicles in each PLC unit. All spaces can move vertically or horizontally by the drive of hydraulic except the space in the top level. The top level cars can only move vertically. When a car needs to park or release, all spaces under this car will move automatically to form a free channel under this space, in this case, the space will go up and down freely. When it reaches the ground, the car will be driven out and in easily.



Characteristics:

Take full use of land to raise more parking spaces;

Reliable hydraulic fast drive mode;

High speed and fast pick cars;

A whole system for safety protection for cars or personals;

Saving energy and environmental protection;

Advanced PLC micro-controller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons;

Fashionable and elegant appearance will can be easily in harmony with surrounding environment.



Protection Devices:

Including under voltage protection;

Wrong or lack phase protection;

Motor overload safety protection;

Overtime/short time safety protection;

Vehicle positioning device;

Vehicle length detection and entrance photoelectric safety device;

Warning light when operation;

Emergency stop device;

Power-off brake;

Fault diagnosis display on liquid;

The limits switch status tracking detection.



Adapted Places:

Residential parking lot, apartment,public parking place,hotels,schools,shopping mall,commercial center and office buildings,etc...



Online video link:

https://youtu.be/rBF5zcy6V_8



Pictures:

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System



Sample Drawings:

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System

Remarks: Please send us your land layout, our engineer will design drawings and provide best parking solutions for you!



FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---For this model, 16 car spaces can be loaded into 1x40'open top container.
---The HS code is 84289020.

4. How about the lead time?
---30 to 60 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--We will send 1-2 engineers to your country to guide the installation, commissioning, training your staff.


Company Profile:

We are a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.

Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.

If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.



Here below are other main products of our company:

Selling STMY PSH Car Park Puzzle Systems/Parking Puzzle Solution/Puzzle Type Parking System/Puzzle Car Parking System
