Home ProductsPuzzle Parking System (Motor and Wire Rope)

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

China Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System supplier

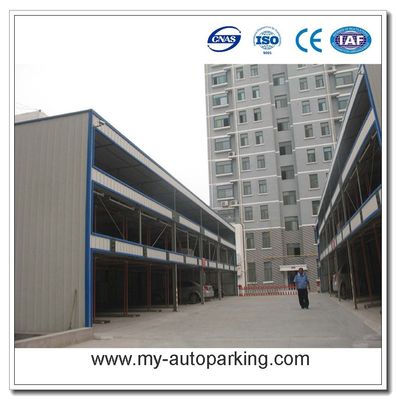

Large Image :  Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: PSH2-9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $2000-4000
Packaging Details: Standard Export Package
Delivery Time: 30-45 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 5000 car slots / month
Detailed Product Description

Product Specifications:



Brand Name  STMY
Model No.  PSH2, PSH3, PSH4, PSH5, PSH6, PSH7, PSH8, PSH9
Type

 Mechanical Puzzle Car Parking System  (2-9 Levels )

Mode of Operations  LCD/IC card/Manual
Car Capacity

 ≤2000kgs; ≤2500kg

Mode of drive

 Hydraulic+Chain / Motor+Steel Rope

Car Size  (L×W×H)

 5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm

Lifting speed

 4 KW 8-12m/min  / 2.2KW 5.6m/min

Warning device

 Yes
Safeguard device

 Whole protection and anti-falling hook device

Rise Time  50s
Fall Time  40s
Work Noise  < 65dB ( A )
Voltage

 220V/240V/380V (Customized for different countries' demand)

Motor Power  2.2-3.7KW
Maximum Working Pressure  16 MPa
Malfunction Indication  Fault diagnosis by computer, liquid crystal display
Treatment

 Galvanized treatment and high-grade anti-corrosion paint

Color

 Red, Blue, Grey, Yellow etc. ( customized

 according to user demand )

Certification  ISO9001 and CE



Actuating Device:

1. Motor + Chain + Car Loading Pallet

2. Motor + Steel Rope + Car Loading Pallet

3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet



Working Principle:

The equipment is designed with multi-levels and multi-rows and each level is designed with a space as an exchanging space. All space can be lifted automatically except the space in the top level. When the car needs to park or release, all spaces under this car space and forms lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.



Characteristics:

Take full use of land to raise more parking spaces;

Reliable motor and wire rope fast drive mode;

High speed and fast pick cars;

A whole system for safety protection for cars or personals;

Saving energy and environmental protection;

Advanced PLC micro-controller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons;

Fashionable and elegant appearance will can be easily in harmony with surrounding environment.



Protection Devices:

Including under voltage protection;

Wrong or lack phase protection;

Motor overload safety protection;

Overtime/short time safety protection;

Vehicle positioning device;

Vehicle length detection and entrance photoelectric safety device;

Warning light when operation;

Emergency stop device;

Power-off brake;

Fault diagnosis display on liquid;

The limits switch status tracking detection.



Adapted Places:

Residential parking lot, apartment,public parking place,hotels,schools,shopping mall,commercial center and office buildings,etc...



Online video link:

http://youtu.be/IuaeE5sNOpU

https://youtu.be/UAlysinqO-w

https://youtu.be/thBwy0HLdHQ



Pictures:

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Sample Drawings:

Supplying Automatic Parking Lift China/ Smart Pallet Parking System/ Pallet Stacking System/ Portable Car Parking System

Remarks:  Please send us your land layout,  our engineer will design drawings and provide best parking solutions for you!



FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---For this model, 15 car spaces can be loaded into 1x40'GP container.
---The HS code is 84289020.

4. How about the lead time?
---30 to 60 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--We will send 1-2 engineers to your country to guide the installation, commissioning, training your staff.


Company Profile:

We are a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.

Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.

If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.
