Payment & Shipping Terms:
|Model No.||PSH2, PSH3, PSH4, PSH5, PSH6, PSH7, PSH8, PSH9|

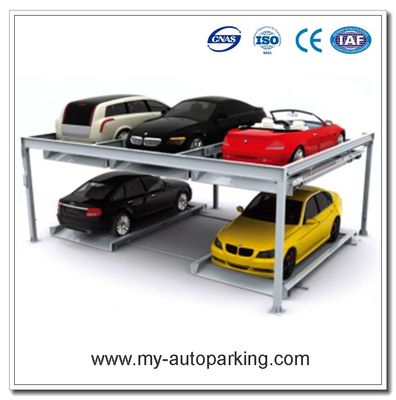

Mechanical Puzzle Car Parking System (2-9 Levels )
|Mode of Operations||LCD/IC card/Manual|
Mode of drive
Hydraulic+Chain / Motor+Steel Rope
|Car Size (L×W×H)||
|4 KW 8-12m/min / 2.2KW 5.6m/min|
Whole protection and anti-falling hook device
|Work Noise||< 65dB ( A )|
220V/240V/380V (Customized for different countries' demand)
|Maximum Working Pressure||16 MPa|
|Malfunction Indication||Fault diagnosis by computer, liquid crystal display|
Galvanized treatment and high-grade anti-corrosion paint
Red, Blue, Grey, Yellow etc. ( customized
according to user demand )
|Certification||ISO9001 and CE|
1. Motor + Chain + Car Loading Pallet
2. Motor + Steel Rope + Car Loading Pallet
3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet
The equipment is designed with multi-levels and multi-rows and each level is designed with a space as an exchanging space. All space can be lifted automatically except the space in the top level. When the car needs to park or release, all spaces under this car space and forms lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.
Take full use of land to raise more parking spaces;
Reliable motor and wire rope fast drive mode;
High speed and fast pick cars;
A whole system for safety protection for cars or personals;
Saving energy and environmental protection；
Advanced PLC micro-controller programmed and has Liquid crystal display;
Very simple operated with a smart card or manual buttons;
Fashionable and elegant appearance will can be easily in harmony with surrounding environment.
Including under voltage protection;
Wrong or lack phase protection;
Motor overload safety protection;
Overtime/short time safety protection;
Vehicle positioning device;
Vehicle length detection and entrance photoelectric safety device;
Warning light when operation;
Emergency stop device;
Fault diagnosis display on liquid;
The limits switch status tracking detection.
Residential parking lot, apartment,public parking place,hotels,schools,shopping mall,commercial center and office buildings,etc...
Online video link:
Remarks: Please send us your land layout, our engineer will design drawings and provide best parking solutions for you!
