On Sale! Double Deck Parking Lift/ Multi level Parking System Project/Automated Parking System Cost/ Multiparking Klaus

On Sale! Double Deck Parking Lift/ Multi level Parking System Project/Automated Parking System Cost/ Multiparking Klaus

China On Sale! Double Deck Parking Lift/ Multi level Parking System Project/Automated Parking System Cost/ Multiparking Klaus supplier

Large Image :  On Sale! Double Deck Parking Lift/ Multi level Parking System Project/Automated Parking System Cost/ Multiparking Klaus

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO & CE
Model Number: QDMY-SJG

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $6000-10000/Per set
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: 30%TT in advance, 70%TT before shipping, L/C, Western Union, MoneyGram
Supply Ability: 100 sets/month
Detailed Product Description

Product Specifications:



Brand Name  STMY
Model No.

 QDMY-SJG

 1 level above ground, 1 level  underground in a  pit

Type    Pit design scissor parking lift for 2 cars
Mode of Operations                                      Manual buttons/Keys
Car Capacity

 ≤2000kgs; 3000kg; 3500kg (Customized)

Mode of drive

 Hydraulic

Car Size  (L×W×H)

 5000mm×1850mm×1550mm;

 5000mm×1850mm×2050mm; (Customized)

Platform Size (LxW)

 5500mm x 2800mm (Customized)

Lifting Height

 2200mm (Customized)
Safeguard device  Whole protection and anti-falling hook device
Lifting Speed  4-6m/min
Stop at any height  Yes, can be set
Work Noise  < 60dB ( A )
Electricity

110v 220V/240V/380V

(customized for different country)

Motor Power  5.5-7.5KW
Maximum Working Pressure  16 MPa
HS Code  84289020
Surface Treatment

 High-grade anti-corrosion paint

Color

 Red, Blue, Grey, Yellow etc.

 (customized according to user demand )

Certification  ISO9001 and CE





Actuating Device:

Hydraulic Pump + Cylinder + Steel Rope + Car Loading Platform





Working Principle:

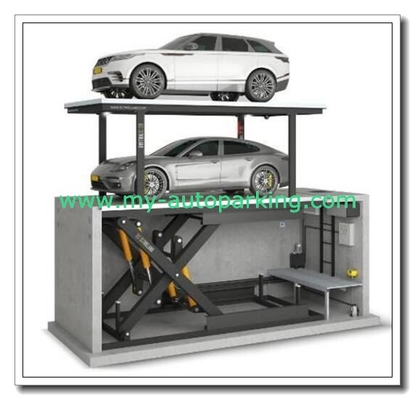

This pit design scissor parking lift is designed for 2 cars. Usually, the bottom level car is underground in a pit, the upper level car is above ground. The two car spaces are united as a whole unit and lifted up and down together, when the car platform is lifted to the ground level,

the user can pick or park his car easily.





Characteristics:

  • Take full use of land to raise more parking spaces;
  • Reliable hydraulic drive modes;
  • A whole system for safety protection for cars or personals;
  • Saving energy and environmental protection;
  • Simple operated with manual buttons and keys;
  • Optional color can be easily in harmony with surrounding environment;
  • The top level may be decorated with grass or floor tiles to harmony with surrounding building.
  • No influence to building sharing light



Online Video Show:

http://youtu.be/vTbBz_gM3pI





Pictures:



On Sale! Double Deck Parking Lift/ Multi level Parking System Project/Automated Parking System Cost/ Multiparking Klaus



On Sale! Double Deck Parking Lift/ Multi level Parking System Project/Automated Parking System Cost/ Multiparking Klaus



On Sale! Double Deck Parking Lift/ Multi level Parking System Project/Automated Parking System Cost/ Multiparking Klaus



Sample Drawings:

On Sale! Double Deck Parking Lift/ Multi level Parking System Project/Automated Parking System Cost/ Multiparking Klaus



On Sale! Double Deck Parking Lift/ Multi level Parking System Project/Automated Parking System Cost/ Multiparking Klaus





Remark: The lifting table size, car weight, lifting height can be customized according to customers' request.
