Product Details:
Payment & Shipping Terms:
|
Product Specifications:
| Brand Name | STMY |
| Model No. | QDMY-3-4P |
| Product Name | Four Post Quadruple Parking Lift |
| Mode of Operations | Manual Buttons /Keys |
| Car Capacity | 1F: No limited ; 2F:≤2500kg; 3F&4F≤2000kg |
| Mode of drive | Hydaulic & Wire Rope |
| Unlock method | Electric |
| Car Size |
4F: 5000 x 1950 x 1600 (mm) 2F&3F: 5000 x 1950 x 1550 (mm) 1F: 5300 x 1950 x 1800 (mm) |
| Warning device | Yes |
| Safeguard device | Whole process protection and anti-falling device |
| Rise Time | 50s |
| Fall Time | 40s |
| Work Noise | < 65dB ( A ) |
| Power | 2.2KW 380V 50Hz 3 Phases (Customized for different country's request) |
| Oil Trays | 9 nos. of plastic oil trays and 8 plastic corrugated trays for free. |
| Treatment | Powder Coating (color optional) |
| HS Code | 84289020 |
| Certification | ISO9001 and CE |
Descriptions:
This four-post parking lift supports four cars parking in one single space, greatly improving garage space utilization. It adopts a simple and stable transmission structure with oil trays installed on runways for effective oil collection and daily cleanliness maintenance. Fully tested with 120% dynamic load and 150% static load, the equipment ensures stable and long-term daily parking operation for residential and commercial projects.

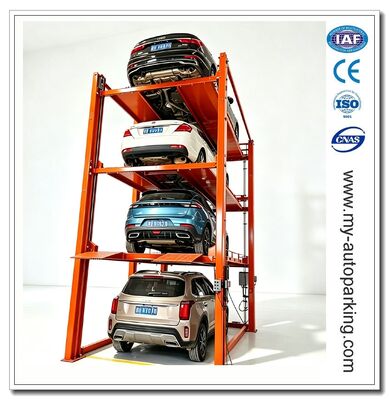

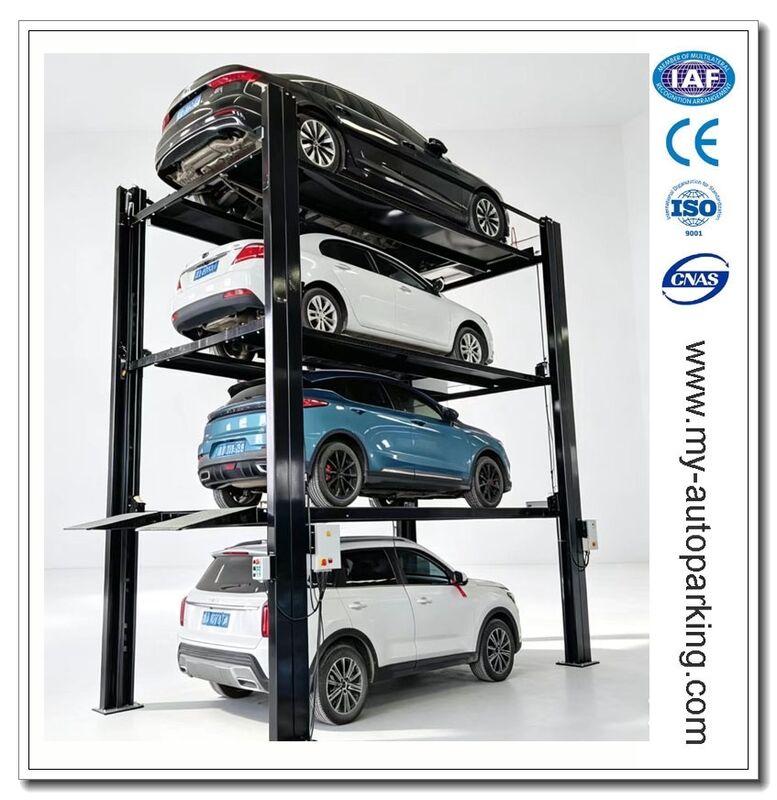

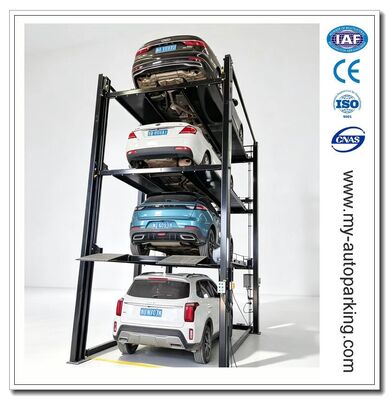

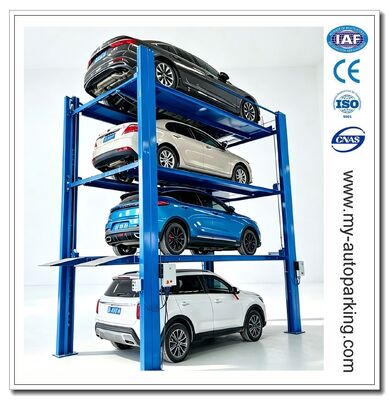

Photos:
Drawings:
FAQ
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.
3. How about the loading information and HS Code?
Company Profile:
Our manufacturing factory is located in Qingdao, one of China’s largest international container seaports, bringing unique logistics advantages for all overseas export orders. Short inland transportation distance cuts domestic truck freight fees greatly compared with inland factories. There are abundant fixed shipping routes from Qingdao Port to Russia, European ports, Southeast Asia and Middle East major harbors with frequent vessel schedules.
Our staff can supervise container loading on site personally to ensure reasonable stacking of steel components, avoid collision deformation during shipment and reduce cargo damage risk at sea. We can cooperate with long-term cooperative freight forwarders to lock preferential ocean freight prices, helping you save overall logistics cost of your parking equipment orders. Combined with factory production advantages and convenient shipping conditions, we provide stable, low-cost and high-efficient one-place manufacturing and shipping solutions for global parking equipment buyers.
Here below are other main products of our company:
#4 car parking lift #quadruple parking garage #4-tier car stacker #four storey parking lift #stacked car parking lift #vertical car stacker lift #4-space parking stacker #quad car parking lift #multi deck car lift #four car stacked garage
