Home ProductsFour Post Triple Parking Lift

Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift

Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift

China Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift supplier

Large Image :  Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: QDMY-2-1P

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $4500-5000
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 sets/month
Detailed Product Description



Product Specifications:


Brand Name  STMY
Model No.  QDMY-2-1P
Type

 3 Level Parking Lift/Tripple Stacker Lift

Mode of Operations  Manual Buttons /Keys
Car Capacity

 ≤2700kgs

Mode of drive

 Hydaulic & Wire Rope

Unlock method

 Electric

Post Height

 3800mm

Warning device

 Yes
Safeguard device

 Whole process protection and anti-falling device

Rise Time   50s
Fall Time  40s
Work Noise  < 65dB ( A )
Power

 2.2KW   380V 50Hz 3 Phases (Customized for different country's request)

Oil Trays

 8 pieces
Treatment

 Powder Coating (color optional)

HS Code

 84289020

Certification  ISO9001 and CE





Descriptions:



1. Storage parking system, mostly used for new cars or cars not move frequently

2. The 2 platforms can be overlapped, the column can be shared upon the parking space, more economical and safer

3. With front ramp and rear ramp, both front and rear direction can be used for cars driving in or out. numerous lines of this equipments can be installed together, only one access for cars driving in or out, which saves the ground space

4. Simple transmission structure, platform is lifted by steel cable which is connected to four corners of platform

5. Screw structure joint of steel cable connects to the platform, maintenance personnel can adjust the balance of cables conveniently

6. With two stages lock system, automatic lock for every platform, which prevent the upper platform to touch the below car

7. One unlock handle to release every platform

8. The cylinders have the pour rumsfeld device, which protects the cylinders, more safer

9. Mold machining through the whole process so that the parts are universal and interchangeable

10. Pass 120% capacity dynamic load text and 150% static load test.

11. Italian oil seal to make sure no oil leakage, inner anti-explosion valve in case of platform drop

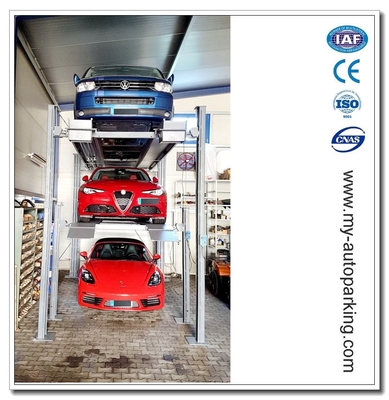

Pictures:

Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift

Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift


Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift



Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift



Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift


Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift



Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift


Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift



Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift



Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift



Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift

Drawings:

Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift





Sharing Column Design:

Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift

Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift



FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---For this model, 4 sets /20'GP container;  8 sets / 40'GP container
---The HS code is 84289020

4. How about the lead time?
---30 to 45 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--This lift is simple structure, we will send user manual, and you can install them easily.



Company Profile:

We are a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.

Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.

If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.



Here below are other main products of our company:Hot! China Double Deck Car Parking/Double Park Lift/Double Parking Car Lift/Garage Lifts/In Ground Car Parking Lift
