Home ProductsDouble Deck Scissor Parking Lift

Hydraulic Residential Car Lift Multi-level Underground Smart Car Parking System Double Car Parking System

Hydraulic Residential Car Lift Multi-level Underground Smart Car Parking System Double Car Parking System

China Hydraulic Residential Car Lift Multi-level Underground  Smart Car Parking System Double Car Parking System supplier

Large Image :  Hydraulic Residential Car Lift Multi-level Underground Smart Car Parking System Double Car Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO & CE
Model Number: QDMY-SJG

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $4000-7000/ per car space
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: 30%TT in advance, 70%TT before shipping, , L/C, Western Union, MoneyGram
Supply Ability: 100 sets/month
Detailed Product Description

Product Specifications:


Brand NameSTMY
Model No.

QDMY-SJG
1 level above ground, 1 level underground in a pit

Type                                                        Pit design scissor parking lift for 2 cars
Mode of Operations Manual buttons/Keys
Car Capacity≤2000kgs; 3000kg; 3500kg (Customized)
Mode of drive Hydraulic
Car Size (L×W×H)

5000mm×1850mm×1550mm;
5000mm×1850mm×2050mm; (Customized)

Platform Size (LxW)5500mm x 2800mm (Customized)
Lifting Height2200mm (Customized)
Safeguard deviceWhole protection and anti-falling hook device
Lifting Speed4-6m/min
Stop at any heightYes, can be set
Work Noise< 60dB ( A )
Electricity

110v 220V/240V/380V
(customized for different country)

Motor Power5.5-7.5KW
Maximum Working Pressure16 MPa
HS Code84289020
Surface TreatmentHigh-grade anti-corrosion paint
Color

Red, Blue, Grey, Yellow etc.
(customized according to user demand )

CertificationISO9001 and CE



Actuating Device:
Hydraulic Pump + Cylinder + Steel Rope + Car Loading Platform


Working Principle:

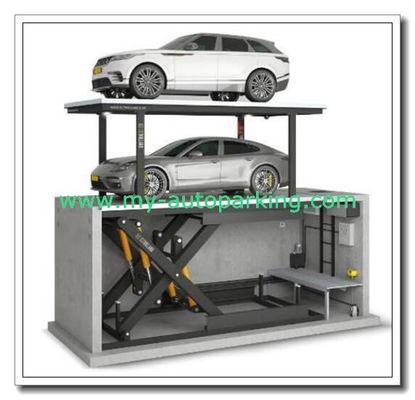

This pit design scissor parking lift is designed for 2 cars. Usually, the bottom level car is underground in a pit, the upper level car is above ground. The two car spaces are united as a whole unit and lifted up and down together, when the car platform is lifted to the ground level,
the user can pick or park his car easily.


Characteristics:

  • Take full use of land to raise more parking spaces;
  • Reliable hydraulic drive modes;
  • A whole system for safety protection for cars or personals;
  • Saving energy and environmental protection;
  • Simple operated with manual buttons and keys;
  • Optional color can be easily in harmony with surrounding environment;
  • The top level may be decorated with grass or floor tiles to harmony with surrounding building.
  • No influence to building sharing light


Online Video Show:
http://youtu.be/vTbBz_gM3pI



Pictures:

Hydraulic Residential Car Lift Multi-level Underground  Smart Car Parking System Double Car Parking System

Hydraulic Residential Car Lift Multi-level Underground  Smart Car Parking System Double Car Parking System


Hydraulic Residential Car Lift Multi-level Underground  Smart Car Parking System Double Car Parking System

Sample Drawings:
Hydraulic Residential Car Lift Multi-level Underground  Smart Car Parking System Double Car Parking System

Hydraulic Residential Car Lift Multi-level Underground  Smart Car Parking System Double Car Parking System


Remark: The lifting table size, car weight, lifting height can be customized according to customers' request.
