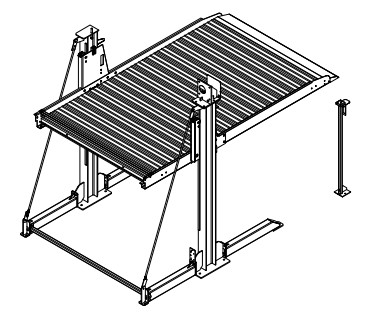

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

China 1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032 supplier

Large Image :  1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: QDMY-8023; QDMY-8027; QDMY-8032

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $1500-2500/Per set
Packaging Details: Standard Export Package
Delivery Time: 20-30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 3000 sets/month
Contact Now
Detailed Product Description

Product Specifications:



Brand Name STMY
Product Name Two Post Parking Lift
Model No. QDMY-8023; QDMY-8027; QDMY-8032
Mode of Drive Hydraulic with Double Chain
Car Capacity ≤2300kg, 2700kg, 3200kg
Lifting Height 1800mm, 2100mm, 2132mm
Mode of Operation Manual buttons / Keys (Optional)
Motor Power 2.2 Kw
Photoelectric Sensor Prevent people or cars entering by mistake during operation
Anti-falling Device Multi-level locking holes
Warning Device Buzzer alarming during operation
Rise/Fall Time 60/55s
Working Noise < 60dB ( A )
Voltage 110V/220V/230V/240V/380V/415V (Customized )
Platform Galvanized wave platform
Surface Treatment High-grade anti-corrosion powder coating
Color Red, Blue, Grey, Yellow, Black, etc. (Customized )
HS Code 84289020
Certificate ISO9001 and CE
Warranty Term 12 months for electrical parts, 5 years for structure



Actuating Device:

  • Two stage dual-cylinder lifting system, hydraulic direct driven, chain-balancing system;
  • Electric or manual lock release system; multi-levels locking devices (3 or 5 holes);
  • Adjustable parking heights, optional remote control;
  • Optoelectronic switch device (prevent people or car miss-entrance during operation);
  • Nice appearance of electric powder coating (color optional) or hot dipped galvanized surface treatment;
  • Optional galvanized wave platform or diamond plate;
  • Buzzer and warning light flashing during operation;
  • The control button can choose long time press or jog buttons;
  • High polymer polyethylene slide blocks, self-lubricating, wear-resistance and high temperature resistance.
  • Suitable for commercial and residential use.



Working Principle:

This parking lift is designed as 2 spaces. The bottom car can go in and out directly. When the space in the down level is spared, the space in the upper level will fall to ground. Then the car will go out and in freely.



Characteristics:

  • Simple operation
  • Safe and reliable
  • Convenient in and out of car
  • Ultra low noise
  • Small space occupation
  • Beautiful and fashionable in appearance
  • Easy and fast installation
  • Both suitable for home use and public use



Online Video Show:

Single Unit : https://youtu.be/-r-jBQ0E7Z8

Sharing Column : https://youtu.be/4VA67AwriFU

Installation Video: https://youtu.be/NcR42Q6tYlM

Factory Demo Video: https://youtu.be/IS29O-k1EPQ



Pictures:

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

Size Information:

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

1. Two Post Parking Lift QDMY-8023; QDMY-8027; QDMY-8032

                                                                                      Unit A + Unit B + Unit B



FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
----100%TT in advance for sample order (1-3 sets)

----30%TT in advance, and 70%TT before shipping or 70%LC at sight for full container order.

3. How about the loading information and HS Code?

---The HS code is 84289020

---8 sets/20’GP container; 20 sets/40’GP container (Unit A)

---12 sets/20’GP container; 24 sets/40’GP container (Unit B)


4. How about the lead time?
---20-30 days (In peak season, 45 days).

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide training services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
----This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.

9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



10. What are the certificates?

---ISO90001 & CE.



11. What means Unit A and Unit B?

---If the parking lifts are installed in one same row, the posts can share with each other.

---Unit A means first set with 2 posts, Unit B means the extra set with single post, price is -USD80 cheaper.



12. What are photoelectric sensors?

---It is installed at bottom post to detect unexpected vehicles or persons coming by mistake.

---If the garage have a height limit, we can also add one sensor at top to avoid top car to touch the garage ceiling.
