26. Rotary Car Parking System

26. Rotary Car Parking System

China 26. Rotary Car Parking System supplier

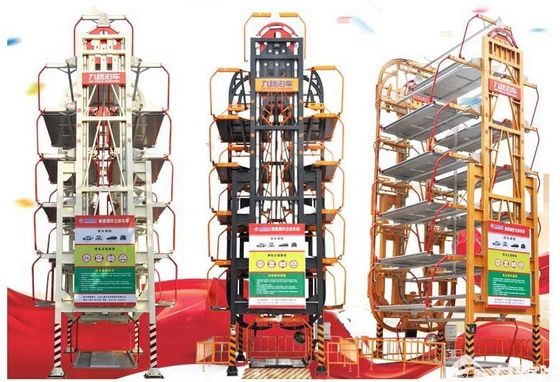

Large Image :  26. Rotary Car Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO9001 & CE
Model Number: QDMY-XH5; QDMY-XH6; QDMY-XH8; QDMY-XH10; QDMY-XH12; QDMY-XH14; QDMY-XH16;QDMY-XH20

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $5000-6500/Per car space
Packaging Details: Standard Export Package
Delivery Time: 30-60 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 200 units /per month
Detailed Product Description

Product Specifications



Brand Name STMY

Model No.



QDMY-XH5 QDMY-XH6 QDMY-XH20

QDMY-XH8 QDMY-XH8-SUV

QDMY-XH10 QDMY-XH10-SUV

QDMY-XH12 QDMY-XH12-SUV

QDMY-XH14 QDMY-XH14-SUV

QDMY-XH16 QDMY-XH16-SUV

(5,6,8,10,12,14,16,20 Sedan or SUV Spaces)

Type Vertical rotary car parking system
Mode of Operation Smart IC cards & Manual buttons
Car Weight ≤1800kgs; 2500kgs
Car Size (L/W/H)

≤5300mm×2000mm×1550mm (Sedans)

≤5300mm×2100mm×2000mm (SUVs)

Mode of Drive Motor and Chain
Motor Power 4-24KW (for different models)
Cycle Speed 4.4-7.9m/min (for different models)
Max. collection time 45s-145s (for different models)
Working Voltage 110V/220V/ 240V/380V (customized)
Safeguard Device Yes
Control System PCL
Warranty term                                  12 months for electrical key parts, 5 years structure
Lead Time 30-60 days
Outer Size Please see below dimensions
Package Steel frame and foam film
Surface Treatment High-grade anti-corrosion painting
Color Red, blue, grey, yellow, green etc. ( Optional)
Certification ISO9001 and CE



Working Principle

The vertical rotary system consists of transmission driven by speed-reducing motor, and lifts mounted on chains with intervals. All cars parked on lifts and empty lifts travel vertically when a parking or picking-up is in process.



Characteristics

  • Simple operation
  • Safe and reliable
  • Convenient in and out of car
  • Small space occupation
  • Beautiful and fashionable in appearance
  • Easy and fast installation
  • Both suitable for home use and public use



Protection Devices

1. Power protection device for under voltage, wrong or lack phase, and motor overload safety protection;

2. Traffic stop device

3. Fault alarm with fault code showing on screen

4. Vehicle length detection device and car, person entrance detection device

5. Sound and Warning light when operation

6. Emergency stop device

7. Fall prevention device

8. Limit protection switch for status tracking detection



Adapted places

Residential parking lot, apartment,public parking place,hotels,schools,shopping mall,commercial center and office buildings,etc...



Photos

26. Rotary Car Parking System

26. Rotary Car Parking System

26. Rotary Car Parking System

26. Rotary Car Parking System

26. Rotary Car Parking System

26. Rotary Car Parking System

26. Rotary Car Parking System

26. Rotary Car Parking System

26. Rotary Car Parking System

26. Rotary Car Parking System

26. Rotary Car Parking System



Sample Drawings



26. Rotary Car Parking System



26. Rotary Car Parking System



26. Rotary Car Parking System



26. Rotary Car Parking System





Online Video Show

https://youtu.be/0nR_QtU3fAI

https://youtu.be/jg6Dv3zEnrA

https://youtu.be/t02CLLCcNhE

https://youtu.be/N5Yp3R7ni-Y

https://youtu.be/pa5lZHODS70

https://youtu.be/Z0b_U7trCyc

https://youtu.be/tW9kkctX2eU

https://youtu.be/YR8qzkrhCNU

https://youtu.be/dXvMpx3fdy4

https://youtu.be/4nPmSMx0Rhg

https://youtu.be/-QvTFQTyj7I



FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---It needs 1-2 20'GP & 40'GP containers to load all cargo
---The HS code is 84289020

4. How about the lead time?
---30 to 60 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
----We will send 1-2 engineers to your country to guide the installation, commissioning, training your staff.
