8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower

Good quality Two Post Tilting Parking Lift for sales
Good quality Two Post Tilting Parking Lift for sales
I'm Online Chat Now

8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower

China 8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower supplier

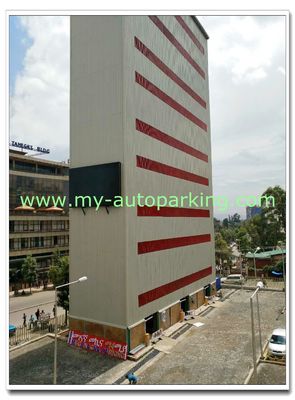

Large Image :  8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: PCS8-30

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $4500-7000
Packaging Details: Standard Export Package
Delivery Time: 30-60 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 sets/month
Contact Now
Detailed Product Description

Product Specifications:


Brand Name  STMY
Model No.  PCS8-30
Type

 Full Automated Tower Parking System (8-30 Floors)

Mode of Operations  LCD /IC card/ Touch Screen
Car Capacity

 ≤2000kgs; 2350kgs;

Mode of drive

 Hydaulic & Wire Rope (8 to 15 levels)

 Tractor & Motor (8 to 30 levels)

Car Size  (L×W×H)

 5300mm×1900mm×1550mm;

 5300mm×1900mm×2050mm

Lifting/Sliding Motor Speed

 30-120m/min;  9.5m/min

Warning device

 Yes
Safeguard device

 Whole process protection and anti-falling device (our patent)

Rise Time   50s
Fall Time  40s
Work Noise  < 65dB ( A )
Power

 380V 50Hz 3 Phases (Customized for different country's request)

Pump Motor  15-30KW
Slide Motor  0.2kw
Rotary Power Speed  1.5kw 4rpm
Treatment

 High grade anti-crossion spray zinc and then spray paint (twice)

Malfunction Indication

 Fault diagnosis by computer, liquid crystal display

Certification  ISO9001 and CE





Working Principle:
The tower parking system adopts comb pallet with mixed characteristics of puzzle parking and vertical lift parking and it adopts a strong hydraulic or tractor motor fast drive mode.




Characteristics:

It is safer and more reliable using hydraulic or tractor drive;

Advanced PLC micro-controller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons or touch screen;

Saving energy and environmental protection;

Fashionable and elegant appearance will be easily in harmony with surrounding environment;




Adapted Places:
Limited parking space with open height (Height limit ≤30 levels)




Pictures:

8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower

8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower


8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower

8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower



8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower

8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower

8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower



8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower


8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower


8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower


8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower




Sample Drawings:

 8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower

  8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower



8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower



  8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26, 27, 28, 29, 30 Floors Automatic Car Parking Tower



Remarks:



1)  We can do  8 to 35 levels for this tower system;

2)  Hydraulic & wire rope / Traction & motor (optional) ;

3)  The garage can be all steel structure, or mixed structure with concrete shaft. (It's up to customer to choose);

4)  We can do some levels for SUVs or 100% SUVs spaces (according to customer's request);

5) Please send your land layout, our engineer will make design to provide the best parking solution for you.





Online Video Show:

https://youtu.be/AvfuzYJ7CxQ

https://youtu.be/MXBUKaIM9GA

https://youtu.be/d0JKv_Eg0Lo





FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---For this model, 8 car spaces can be loaded into 1x40'open top container;
---The HS code is 84289020

4. How about the lead time?
---30 to 60 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--We will send 1-2 engineers to your country to guide the installation, commissioning, training your staff.
