8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking

Good quality Two Post Tilting Parking Lift for sales
Good quality Two Post Tilting Parking Lift for sales
I'm Online Chat Now

8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking

China 8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking supplier

Large Image :  8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: QDMY-PCS8-25

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $4500-7000
Packaging Details: Standard Export Package
Delivery Time: 30-90days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000sets/month
Detailed Product Description

Product Specifications:



Brand Name  QDMY
Model No.  QDMY-PCS8-25
Type

 Full Automated Tower Parking System (8-25 Floors)

Mode of Operations  LCD/IC card
Car Capacity

 ≤2000kgs

Mode of drive

 Tractor & Motor

Car Size  (L×W×H)

 5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm

Lifting/Sliding Motor Speed

 80-120m/min / 7.5m/min

Warning device

 Yes
Safeguard device

 Hydraulic whole protection and anti-fall frame Anti-fall frame

 (our patent)

Rise Time  50s
Fall Time  40s
Work Noise  < 80dB ( A )
Power

 3 phases 5 wires 380V 50Hz

Pump Motor  30KW
Slide Motor  0.2kw
Rotary Power Speed  1.5kw 4rpm
Treatment

 High Grade Anti-crossion Spray Paint

Malfunction Indication

 Fault diagnosis by computer, liquid crystal display

Certification  ISO9001 and CE



Working Principle

The tower parking system adopts comb pallet with mixed characteristics of puzzle parking and vertical lift parking and it adopts a strong tractor motor drive.



Characteristics of the System

It is safer and more reliable using traction drive; The layout of system is more flexible and better use of parking area than vertical lift parking system; This type of parking system is our national invention system and it is a new refreshing system of our high levels puzzle parking system, it is a replacement system of the vertical lift parking system (tower parking system)



Adapted Places

Limited parking space and open height ( height limit ≤25levels)

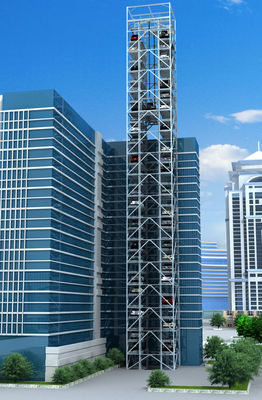

Pictures:

8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking



8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking





8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking







8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking



8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking



8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking



8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking



8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking



8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking

8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking



8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking

8-25 Floors Parking Lot Project Multi-levels Car Parking System High Tower Parking



Remarks:  Please send us your land layout,  our engineer will design drawings and provide best parking solutions for you~!
