Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System

Good quality Two Post Tilting Parking Lift for sales
Good quality Two Post Tilting Parking Lift for sales
I'm Online Chat Now

Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System

China Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System supplier

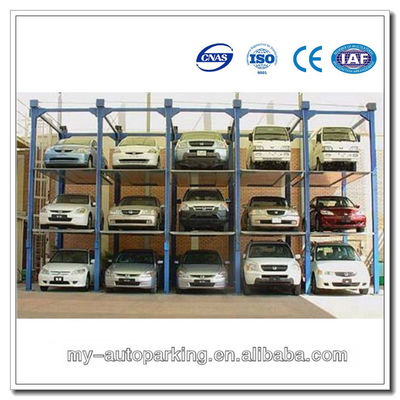

Large Image :  Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO & CE
Model Number: QDMY-3-2P;QDMY-4-3P

Payment & Shipping Terms:

Minimum Order Quantity: 3 Sets
Price: $1600-9000
Packaging Details: Standard Export Package
Delivery Time: 30days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000sets/month
Detailed Product Description

Product Specifications:



Brand Name  STMY
Model No.  QDMY-3-2P;QDMY-4-3P
Type  3 or 4 Levels Valet Stack Parking Lift
Mode of Operations  Manual Control buttons /  Keys
Car Capacity

 ≤2500kg

Mode of drive

 Hydraulic

Car Size  (L×W×H)

 5000mm×1850mm×1550mm;

 5000mm×1850mm×2050mm;

Lifting speed

 5.6m/min

Warning device

 Yes
Safeguard device  Anti-fall Lock devices
Rise Time  60s
Fall Time  50s
Work Noise  < 60dB ( A )
Voltage

 110V/220V/240V/380V (Customized)

Motor Power  3.0 KW
Maximum Working Pressure  16 MPa
Machine Net Weight  No more than 4650kgs
Modes of operation

 High-grade anti-corrosion paint ;

 Hot galvanized (optional)

Color

 Red, Blue, Grey, Yellow etc.

( customized according to user demand )

Certification

 ISO9001 & CE



Introduction:

1. Storage parking system, mostly used for new cars or cars not move frequently;

2. The platforms can be overlapped, the column can be shared upon the parking space, more economical and safer;

3. With front ramp and rear ramp, both front and rear direction can be used for cars driving in or out. numerous lines of this equipments can be installed together, only one access for cars driving in or out, which saves the ground space;

4. Simple transmission structure, platform is lifted by steel cable which is connected to four corners of platform;

5. Screw structure joint of steel cable connects to the platform, maintenance personnel can adjust the balance of cables conveniently;

6. With two stages lock system, automatic lock for every platform, which prevent the upper platform to touch the below car;

7. One unlock handle to release every platform;

8. The cylinders have the pour rumsfeld device, which protects the cylinders, more safer;

9. Mold machining through the whole process so that the parts are universal and interchangeable;

10. Pass 120% capacity dynamic load text and 150% static load test;

11. Italian oil seal to make sure no oil leakage, inner anti-explosion valve in case of platform drop;

12. Optional ultrared rays alarm device, in case of unguarded entrance;



Online Video Show:





http://youtu.be/yEwKvjD8oUg

http://v.youku.com/v_show/id_XNzEyMzM3MzQ0.html









Pictures:

Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System



Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System



Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System



Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System



Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System



Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System



Structure and Dimensions:



Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System

                                                                                                             QDMY-3-2P



Cheap and High Quality 3,4 Floors Vertical Vehicles Parking System



                                                                                    QDMY-4-3P



FAQ

 1.  What trade term you can accept?

----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).



2.   What payment term can you accept?

----Often we accept TT or LC.  For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...



3. How about the loading information and HS Code?

---For this model, 3-4 units can be loaded into 1x40'HQ container;
---The HS code is 842890000

4. How about the lead time?
---30 to 45 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowdegye;

8. How about the installation?
--This model of product is simple structure, usually we send installation drawings to the client, and they can install it themselves.





Company Profile:

Our company is a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.

Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.

If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.



Here below is other main products of our company
