Carted Robtic Garage Stacking Automatic Car Parking System Parking Solution

Good quality Two Post Tilting Parking Lift for sales
Good quality Two Post Tilting Parking Lift for sales
I'm Online Chat Now

Carted Robtic Garage Stacking Automatic Car Parking System Parking Solution

China Carted Robtic Garage Stacking Automatic Car Parking System Parking Solution supplier

Large Image :  Carted Robtic Garage Stacking Automatic Car Parking System Parking Solution

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: QDMY-PCLP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $7500-8000
Packaging Details: Standard Export Package
Delivery Time: 90-120days
Payment Terms: 30%TT in advance, 70%TT or LC before shipping
Supply Ability: 3000 sets/month
Detailed Product Description

Product Specifications:

Brand Name  QDMY
Model No.  QDMY-PCLP
Type

 Parallel Conveyor Type Automatic Car Parking System

Mode of Operation  Manual buttons/ IC card and Touch panel
Car Weight

 ≤2000kg

Car Size (L/W/H)

 5200mm×1950mm×1550mm

Each Level Height

 2100mm

Overall Height

 10750mm

Clamp Arm Motor Power  1.5KW
Sliding Motor Power of Conveyor  0.75KW

Sliding Motor Power of Clamp Arm

 0.2KW
Clamp Arm Rated Speed  30m/min (Frequency adjustable)
Sliding Speed of Conveyor  45m/min (Frequency adjustable)
Sliding Speed of Clamp Arm

 15m/min

Mode of Drive              Hydraulic drive and steel rope hoisting
Power Supply

 380/50hz 3Phases 5 wires

 (Customized according to user's demand)

Garage Door  Quick flexdoor or 2U door
Surface Treatment

 Galvanized treatment and high-grade anti-corrosion

 paint

Color

 Red, Blue, Grey, Yellow etc.

 (Customized according to user's demand )

Certification  ISO9001 and CE





Working Principle:

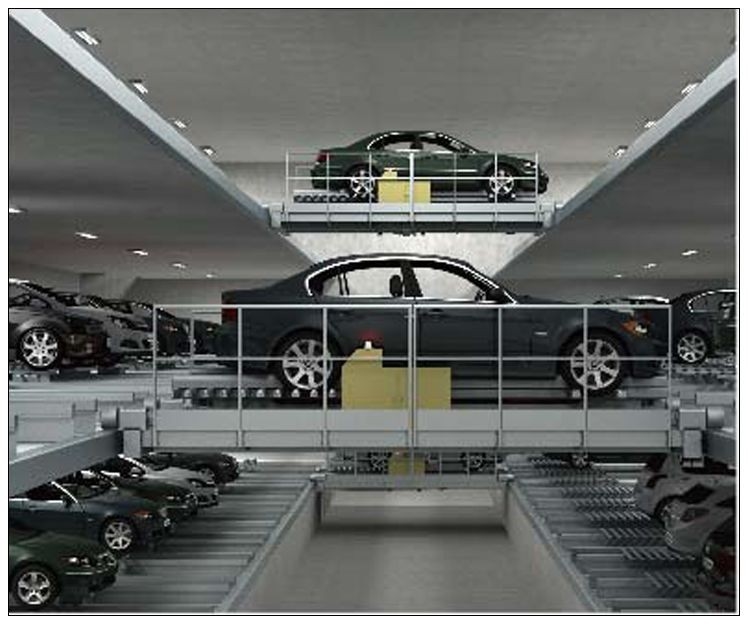

This equipment can park or pick car automatically with a movement of vertical elevator and the reciprocating movements of conveyor on the same level. The car will be turned into right direction when it reaches into the parking room with the movement of a rotation pallet, and then the car will be driven in or out by the car owner.

Carted Robtic Garage Stacking Automatic Car Parking System Parking Solution



Parking Diagram:


 The car in red color will be picked and it needs to finish the following actions:



1.  The convey pallet will slide to the back of this red car, and then the conveyor will convey the red car to the pallet;

2. The convey pallet with the red car will slide to the adjacent position of the elevator, and then the conveyor will change the red car's space from the adjacent to the elevator;

3. The elevator with the red car will lifted vertically down or up to the parking room;

4. The red car will be turned to the right direction by the movement of the rotation pallet;

5. The car will be driven out by car owner;

6. If the whole equipment is above ground, the parking room will be in the bottom level; If the whole equipment is underground, the parking room will be designed in the top level (It depends on client's demand) .



Characteristics:

1. There is no need of ramp, so that greatly save land area, and maxium the parking space;
2. Pick or park car fully automatically with a button press;
3. Suitable for narrow and long parking lot, and also can be installed underground;
4. It equipped with whole safety pretection devices, reliable running;
5. Adopt photoelectric safety inspection to check the car size and quantity of parking numbers;
6. Generally no need for forced ventilation, and no need for large area of lighting, energy saving.


Applicable Places:

The most suitable place for this system is the large and medium-sized buildings or public facilities. It can be used in both above or underground parking lot.


Specifications

Carted Robtic Garage Stacking Automatic Car Parking System Parking Solution







Carted Robtic Garage Stacking Automatic Car Parking System Parking Solution

 Carted Robtic Garage Stacking Automatic Car Parking System Parking Solution



Carted Robtic Garage Stacking Automatic Car Parking System Parking Solution



Remarks:  Please send us your land layout,  our engineer will design drawings and provide best parking solutions for you~!
