-1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System

-1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System

China -1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System supplier

Large Image :  -1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO90001 & CE
Model Number: QDMY-P-1+2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $2000-2500
Packaging Details: Standard Export Package
Delivery Time: 30days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000sets/month
Contact Now
Detailed Product Description

Product Specifications:



Brand Name  QDMY
Model No.  QDMY-P-1+2
Type

 Pit Design Automated Puzzle Parking System (-1+2) 3 Floors

Mode of Operations  LCD/IC card/Manual
Car Capacity

 ≤2000kgs;

Mode of drive

 Motor+Steel Rope

Car Size  (L×W×H)

 5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm

Lifting speed

 4KW 8-12m/min  / 2.2KW 5.6m/min

Warning device

 Yes
Safeguard device

 Hydraulic whole protection and anti-fall frame Anti-fall frame

 (our patent)

Rise Time  50s
Fall Time  40s
Work Noise  < 80dB ( A )
Voltage

 220V/240V/380V

Motor Power  2.2KW
Maximum Working Pressure  16 MPa
Malfunction Indication  Fault diagnosis by computer, liquid crystal display
Treatment

 Galvanized treatment and high-grade anti-corrosion paint

Color

 Red, Blue, Grey, Yellow etc. ( customized

 according to user demand )

Certification  ISO9001 and CE



Actuating Device:



1. Motor + Chain + Car Loading Pallet

2. Motor + Steel Rope + Car Loading Pallet



Working Principle

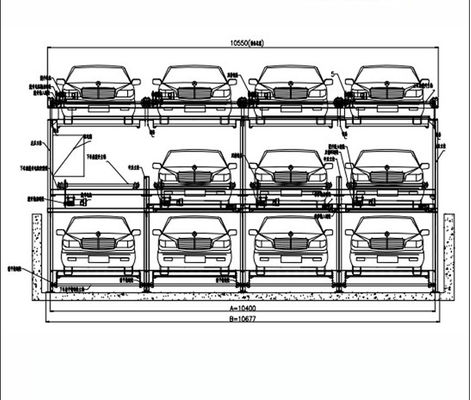

The equipment is designed with 3 levels (1 level is underground in a pit, and 2 levels above ground) and multi-rows and each level is designed with a space as an exchanging space. All space can be lifted automatically except the space in the top level. When the car needs to park or release, all spaces under this car space and forms lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car can be driven out or in easily.



Characteristics of the System

Optional modes of drive: Hydraulic high speed drive; Motor steel rope rolling drive; Motor gear box chain drive.

It adopts 7 national patents technology.

It has safeguard functions of over going protection and crashing protection.

The whole system is adopted galvanized anti-corrosion treatment.

Hydraulic drive has advantages of over loading protection, empty loading motor starting, saving energy and environmental protection.

Automatic Control System has Fault Diagnosis and display for a quick troubleshooting.



Adapted Places

Above ground parking lot or underground basement.

Pictures:

-1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System



-1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System



-1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System



-1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System

-1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System



-1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System



-1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System

-1+2 (3 Floors) PLC Control IC Card Intelligent Pit Design Puzzle Parking System



Remarks:  Please send us your land layout,  our engineer will design drawings and provide best parking solutions for you~!
