2-3 Levels 3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels 3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

China 2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism supplier

Large Image :  2-3 Levels 3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: PSH2-9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $2000-4000
Packaging Details: Standard Export Package
Delivery Time: 20-30days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 5000 sets/month
Detailed Product Description

Product Specifications:



Brand Name  QDMY
Model No.  QDMY-P2-6
Type

 Full Automated Mechanical Puzzle Car Parking System

 ( 1-6 Levels )

Mode of Operations  LCD/IC card/Manual
Car Capacity

 ≤2000kgs; ≤2500kg

Mode of drive

 Hydraulic+Chain / Motor+Steel Rope

Car Size  (L×W×H)

 5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm

Lifting speed

 4KW 8-12m/min  / 2.2KW 5.6m/min

Warning device

 Yes
Safeguard device

 Hydraulic whole protection and anti-fall frame Anti-fall frame

 (our patent)

Rise Time  50s
Fall Time  40s
Work Noise  < 80dB ( A )
Voltage

 220V/240V/380V

Motor Power  2.2KW
Maximum Working Pressure  16 MPa
Malfunction Indication  Fault diagnosis by computer, liquid crystal display
Treatment

 Galvanized treatment and high-grade anti-corrosion paint

Color

 Red, Blue, Grey, Yellow etc. ( customized

 according to user demand )

Certification  ISO9001 and CE



Actuating Device:



1. Motor + Chain + Car Loading Pallet

2. Motor + Steel Rope + Car Loading Pallet

3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet



Working Principle:



The equipment is designed with multi-levels and multi-rows and each level is designed with a space as an exchanging space. All space can be lifted automatically except the space in the top level. When the car needs to park or release, all spaces under this car space and forms lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.



Characteristics:



Optional modes of drive

Hydraulic high speed drive

Motor steel rope rolling drive

Motor gear box chain drive

It adopts 7 national patents technology

It has safeguard functions of over going protection and crashing protection

The whole system is adopted galvanized anti-corrosion treatment

Hydraulic drive has advantages of over loading protection

empty loading motor starting

Saving energy and environmental protection

Automatic Control System has Fault Diagnosis and display for a quick troubleshooting.



Adapted places

Underground basement, Apartment, Public Parking place, shopping mall, etc.



Pictures:

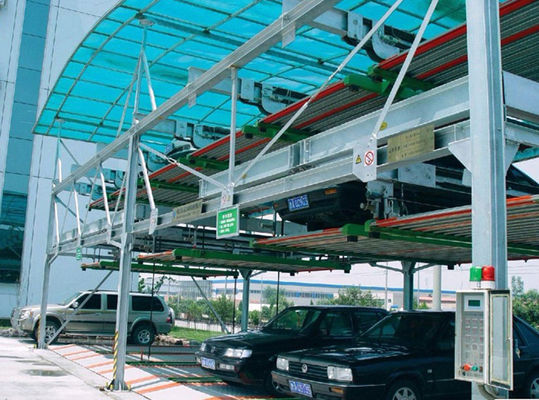

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

 2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

 2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism

2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism



2-3 Levels  3d Puzzle Smart Parking Parking Space Saver Hydraulic Parking Mechanism



Remarks:  Please send us your land layout,  our engineer will design drawings and provide best parking solutions for you~!
