-1+1, -2+1, -3+1 Pit Design Double Deck Parking

China -1+1, -2+1, -3+1 Pit Design Double Deck Parking supplier

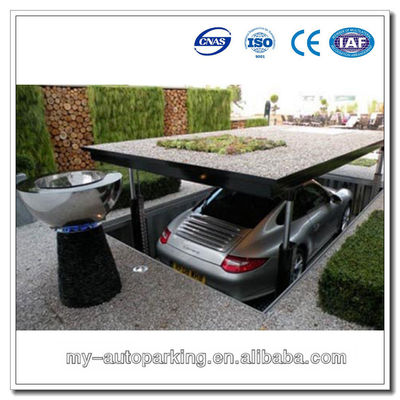

Large Image :  -1+1, -2+1, -3+1 Pit Design Double Deck Parking

Product Details:

Place of Origin: Qingdao, China
Brand Name: QDMY
Certification: ISO & CE
Model Number: PJS(-1+1); PJS(-2+1); PJS(-3+1)

Payment & Shipping Terms:

Minimum Order Quantity: 3 Sets
Price: $2500-3000
Packaging Details: Standard Export Package
Delivery Time: 30days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 sets/month
Detailed Product Description

Product Specifications:

Brand Name  STMY
Model No.

  PJS(-1+1);  1 level above ground, 1 level underground in a pit

  PJS(-2+1);   1 level above ground, 2 levels underground in a pit

  PJS(-3+1);   1 level above ground, 3 levels underground in a pit

Type    Pit design parking system
Mode of Operations                                      Keys/Manual Control buttons
Car Capacity

 ≤2000kgs; 2500kg

Mode of drive

 Motor+Chain / Hydraulic +Chain

Car Size  (L×W×H)

 5000mm×1850mm×1550mm;

 5000mm×1850mm×2050mm;

Lifting speed

 5.6m/min

Warning device

 Yes
Safeguard device  Whole protection and anti-falling hook device
Rise Time  50s
Fall Time  40s
Work Noise  < 80dB ( A )
Voltage

 220V/240V/380V (cusomized)

Motor Power  2.2KW
Maximum Working Pressure  16 MPa
Machine Net Weight  No more than 4650kgs
Modes of operation

Galvanized treatment and high-grade anti-corrosion paint

Color

 Red, Blue, Grey, Yellow etc.

 (customized according to user demand )

Certification  ISO9001 and CE



Actuating Device:

1. Motor + Chain + Car Loading Pallet

2. Motor + Steel Rope + Car Loading Pallet

3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet



Working Principle:



This is -1+1, -2+1, or -3+1 pit design parking system ( 1, 2, or 3 cars are underground in a pit, and 1 car above ground). The whole equipment can be lifted up and down as one unity, when the car platform is in the same line with the ground level, then the car can be collected or parked.



Characteristics:

  • Simple operation
  • Safe and reliable
  • Convenient in and out of car
  • Ultra low noise
  • Small space occupation
  • Beautiful and fashionable in appearance
  • Easy and fast installation
  • Both suitable for home use and public use



Online Video

http://v.youku.com/v_show/id_XNjkzMzU3MjU2.htl



Pictures:

-1+1, -2+1, -3+1 Pit Design Double Deck Parking



-1+1, -2+1, -3+1 Pit Design Double Deck Parking



-1+1, -2+1, -3+1 Pit Design Double Deck Parking



-1+1, -2+1, -3+1 Pit Design Double Deck Parking



-1+1, -2+1, -3+1 Pit Design Double Deck Parking



-1+1, -2+1, -3+1 Pit Design Double Deck Parking



-1+1, -2+1, -3+1 Pit Design Double Deck Parking





 -1+1, -2+1, -3+1 Pit Design Double Deck Parking



-1+1, -2+1, -3+1 Pit Design Double Deck Parking



-1+1, -2+1, -3+1 Pit Design Double Deck Parking



-1+1, -2+1, -3+1 Pit Design Double Deck Parking



-1+1, -2+1, -3+1 Pit Design Double Deck Parking



Structure and Size information:



-1+1, -2+1, -3+1 Pit Design Double Deck Parking



-1+1, -2+1, -3+1 Pit Design Double Deck Parking
