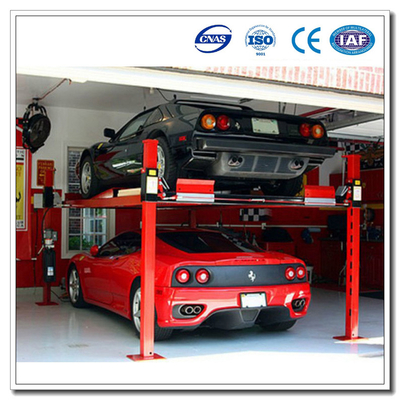

4 Post Car Lift Mechanical Car Parking Equipment

4 Post Car Lift Mechanical Car Parking Equipment

China 4 Post Car Lift Mechanical Car Parking Equipment supplier

Large Image :  4 Post Car Lift Mechanical Car Parking Equipment

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: QDMY-608A; QDMY-608B, QDMY-608C

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $1200-2300/Per Set
Packaging Details: Standard Export Package
Delivery Time: 20-30 Days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 3000 Sets/month
Detailed Product Description

Product Specifications:



Brand Name  STMY
Model No.

 QDMY-608(E); QDMY-608N(E); QDMY-608XLT(E);

 (E) means electrical lock release

Type  Four Post Car Parking Lift for 2 cars (Double Stacker)
Mode of Operations  Manual buttons / Keys
Car Capacity

 ≤3700kgs (8000 lbs)

Mode of drive

 Hydraulic

Car Size (L×W×H)

 5000mm×1850mm×1550mm;

 5000mm×1850mm×2050mm;

Lifting Height

 QDMY-608(E):      1800mm;

  QDMY-608N(E):   1900mm:

 QDMY-608XLT(E): 2000mm.

Warning device

 Yes
Safeguard device  Hydraulic whole protection and anti-fall lock devices
Rise Time  50s
Fall Time  40s
Work Noise  < 80dB ( A )
Voltage

 220V/240V/380V (customized)

Motor Power  2.2KW
Maximum Working Pressure  16 MPa
Machine Net Weight  less than 1000kgs
Modes of operation

 High-grade anti-corrosion paint

Color

 Black, Red, Blue, Grey, Yellow etc. ( customized

 according to user demand )

Certificate  ISO9001 and CE



Working Principle:

This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.



Description:

1. Good choice for parking and simple repair

2. Hydraulic driven, cable lifting system

3. Manual or electric single point release

4. Automatic lock system ensure safety in different heights

5. Maintenance free load bearing

6. Immovable runway

7. Stop blocks in all posts for added safety

8. Moveable drip trays prevent pollution of vehicle on floor

9. Caster kit for moving the lift easily

10.Mold machining through the whole process so that the parts are universal and interchangeable

11.120% capacity Dynamic load text and 150% static load test

12.Italian oil seal to make sure no oil leakage

13.Electromagnetic valve with urgent manual drop function

14.Optional Manual pump for lock release in case of power off.

15.Optional 24V Control box and Electromagnetic valve



Pictures:

4 Post Car Lift Mechanical Car Parking Equipment



4 Post Car Lift Mechanical Car Parking Equipment



4 Post Car Lift Mechanical Car Parking Equipment



4 Post Car Lift Mechanical Car Parking Equipment



4 Post Car Lift Mechanical Car Parking Equipment



4 Post Car Lift Mechanical Car Parking Equipment



4 Post Car Lift Mechanical Car Parking Equipment



4 Post Car Lift Mechanical Car Parking Equipment



4 Post Car Lift Mechanical Car Parking Equipment



4 Post Car Lift Mechanical Car Parking Equipment



4 Post Car Lift Mechanical Car Parking Equipment



Structure and Dimensions:

4 Post Car Lift Mechanical Car Parking Equipment



(4 Post Car Lift Mechanical Car Parking Equipment





FAQ

 1.  What trade term you can accept?

----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).



2.   What payment term can you accept?

----Often we accept TT or LC.  For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...



3. How about the loading information and HS Code?

---For this model, 24 sets can be loaded into 1x40'GP container;
---The HS code is 842890000

4. How about the lead time?
---30 to 45 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.
