4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs

4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs

China 4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs supplier

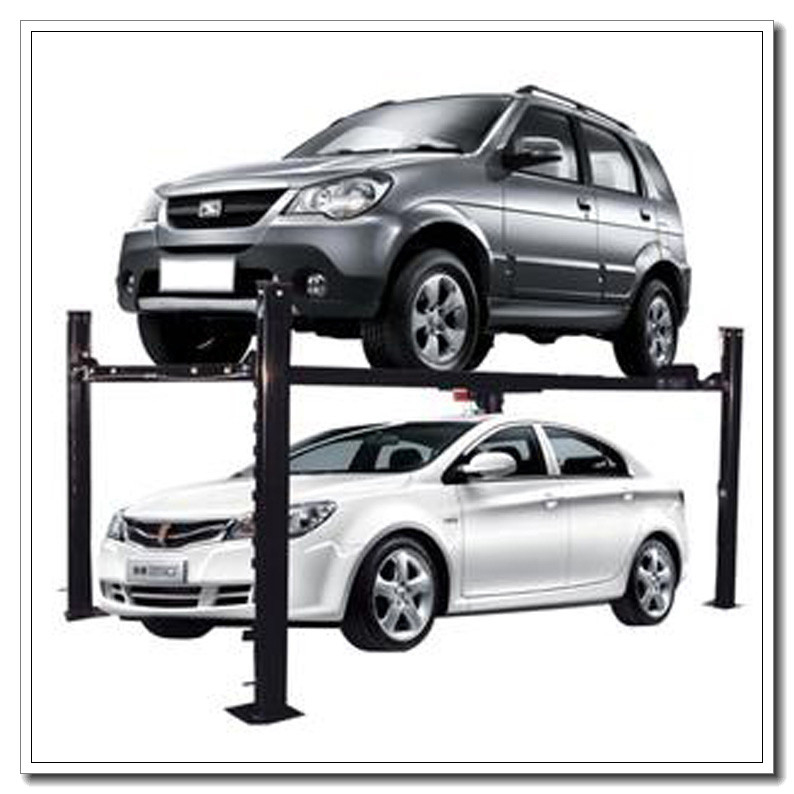

Large Image :  4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: QDMY-608A; QDMY-608B, QDMY-608C

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $1200-2300/Per Set
Packaging Details: Standard Export Package
Delivery Time: 20-30 Days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 3000 Sets/month
Contact Now
Detailed Product Description
Product Name: 4 Post Parking Hoist Usuage: Garage Storage Lift
Drive Mode: Hydraulic Lifting Weight: 3600kgs, 3700kgs, 4000kgs

Product Specifications:

Brand Name  STMY
Model No.

 QDMY-608A, QDMY-608B, QDMY-608C

Type  Four Post Car Parking Lift
Mode of Operations  Manual buttons / Keys
Car Capacity

 ≤3600kgs;4000kgs

Mode of drive

 Hydraulic and Wire Rope

Car Size (L×W×H)

 5000×1850×1550 (mm)

 5000×1850×1700 (mm)

 5200×2000×1700 (mm)

 5200×2000×2050 (mm)

Lifting Height

 1750mm; 1800mm; 2000mm; 2100mm

Warning device

 Yes
Safeguard device  Hydraulic whole protection and anti-fall lock devices
Rise Time  50s
Fall Time  40s
Work Noise  < 65dB ( A )
Voltage

 110V/220V/240V/380V /415V (Customized)

Motor Power  2.2KW
Maximum Working Pressure  16 MPa
Machine Net Weight  760kgs; 860kgs, 950kgs, 780kgs, 880kgs, 980kgs
Modes of operation

 High-grade anti-corrosion paint

Color

 Black, Red, Blue, Grey, Yellow etc. ( Customized)

Certificate  ISO9001 and CE



Working Principle:

This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.



Description:

1. Good choice for parking  or simple repair

2. Hydraulic driven, cable lifting system

3. Manual or electric single point release

4. Automatic lock system ensure safety in different heights

5. Maintenance free load bearing

6. Immovable runway

7. Stop blocks in all posts for added safety

8. Moveable drip trays prevent pollution of vehicle on floor

9. Caster kit for moving the lift easily

10.Mold machining through the whole process so that the parts are universal and interchangeable

11.120% capacity Dynamic load text and 150% static load test

12.Italian oil seal to make sure no oil leakage

13.Electromagnetic valve with urgent manual drop function

14.Optional Manual pump for lock release in case of power off.

15.Optional 24V Control box and Electromagnetic valve



Online Video Show:

https://youtu.be/h_02TngkewU



Pictures:

4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs



4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs



4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs



4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs



Structure and Dimensions:



                                                       Model No.: QDMY-608A

4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs



                                                         Model No.: QDMY-608B

4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs

Important Remarks for QDMY-608A & QDMY-608B

1. We give 1 nos. of iron tray and 3 nos. of plastic oil trays for free.

2. If add galvanized wave plate in the middle part, each set needs to add +USD150.

3. If add side protection baffles at both side runways, each set needs to add +USD50.

4. If add wheels for moving, each set needs to add +USD35.

5. If change manual unlock release to automatic release, each set needs to add +USD120.

6. If increase the middle runway from 950 to 1020mm, price not change, please contact us.

7. Lifting weight: 2700kgs/3600kgs/4000kgs (Customized)

8. QDMY-608A is standard model, QDMY-608B is new square tube design.



                                                                            Model No.: QDMY-608C

4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs

Important Remarks for QDMY-608C

1. The standard model lifting height is 1750mm, can be customized height as 2000mm.

2. The platform is full filled galvanized plate.

3. Lifting weight: 3700kgs

Do you also want four post double wide parking lift to park 4 cars?  Clike here↓↓↓



                                                                  QDMY-608D

4 Post Parking Hoist Garage Storage Lift to Park 2 Vehicles 3700kgs
FAQ

 1.  What trade term you can accept?

----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).



2. What payment term can you accept?

----Often we accept TT or LC. For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...



3. What about the container loading information?

----QDMY-608A & QDMY-608B: 12 Sets/20'GP container; 24 Sets/40'GP container

----QDMY-608C:  8 Sets/20'GP container; 16 Sets/40'GP container



4. What is the HS Code?

---The HS code is 84289020



5. How about the lead time?
---30 days (according to order quantity);

6. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

7. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

8. Do you provide trainning services:
--Yes, we provide free training services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

9. How about the installation?
--This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.

10. What is the warranty term?
--12 months for electrical key parts, 5 yeas for mechanical structure.
